Electric Three Wheeler for Garbage Collecting, Ioneletric Series
E-Garbage Loader

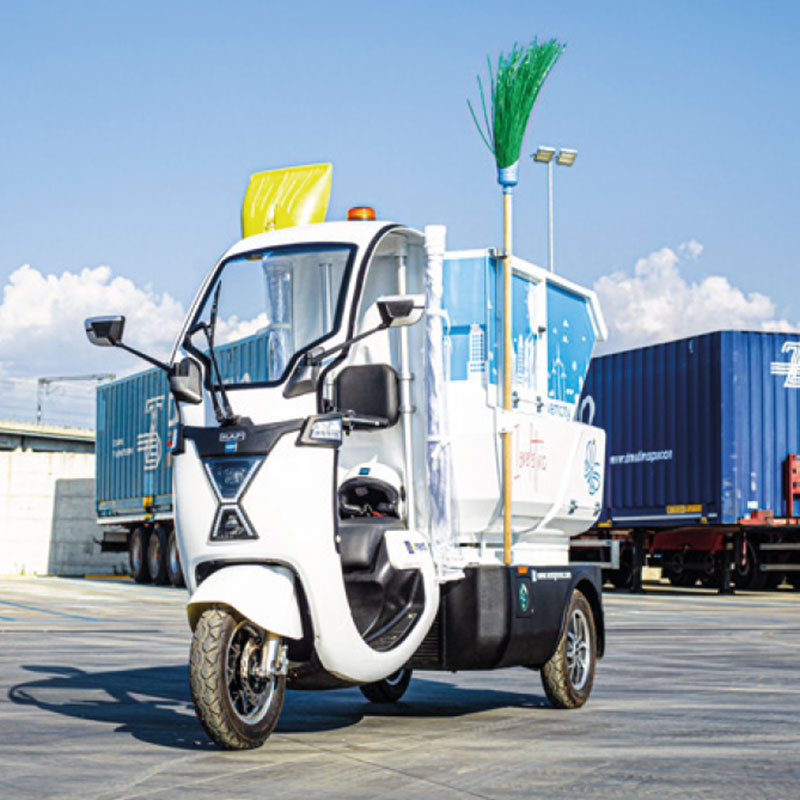

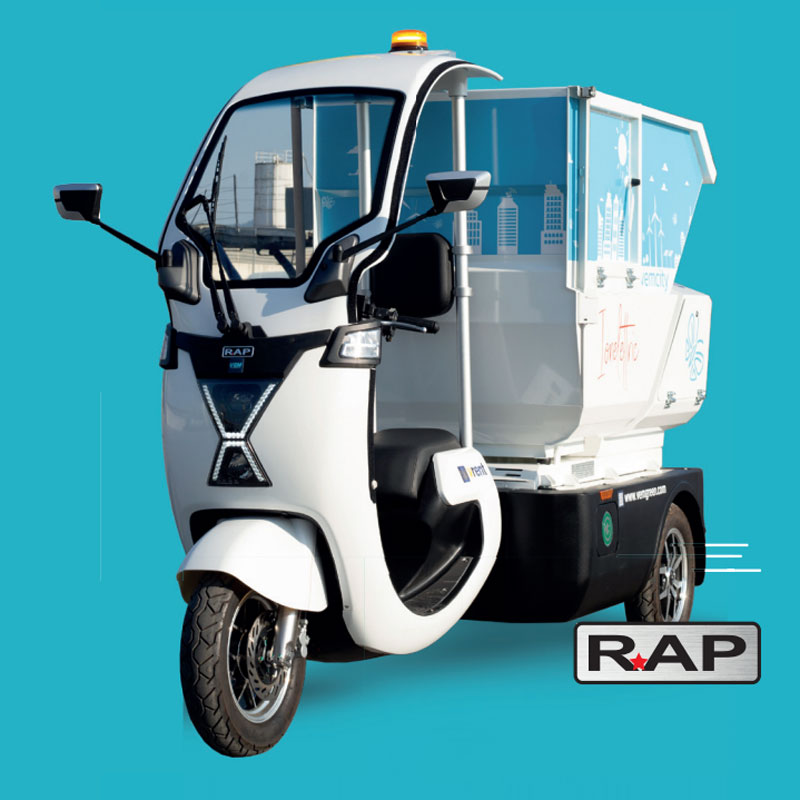

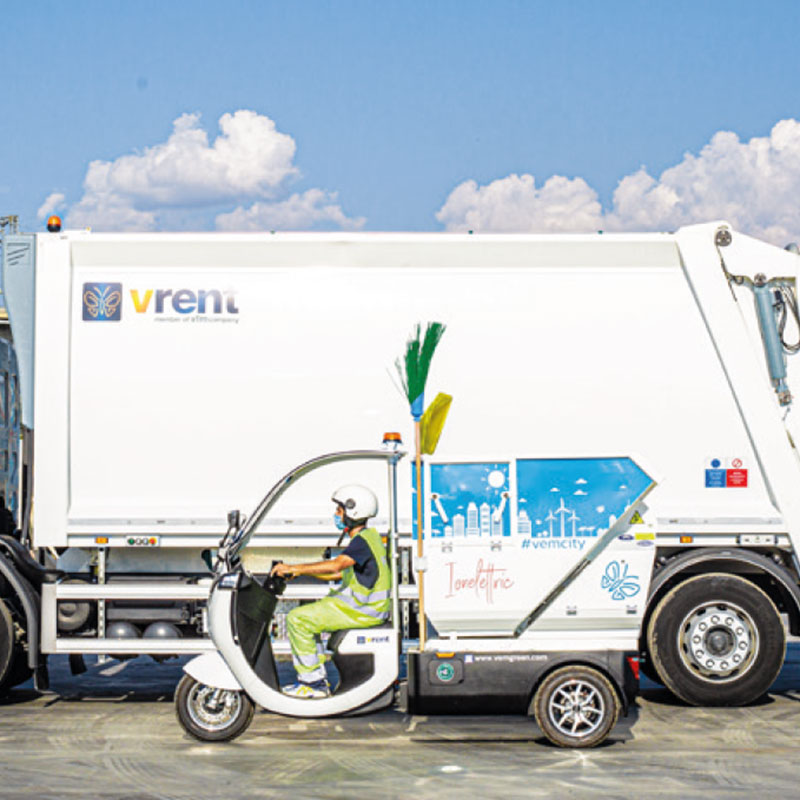

Ionelettric is an electric three wheeler designed to realize collecting and cleaning up garbage in traffic-restricted areas, thanks to its mobility and small size.

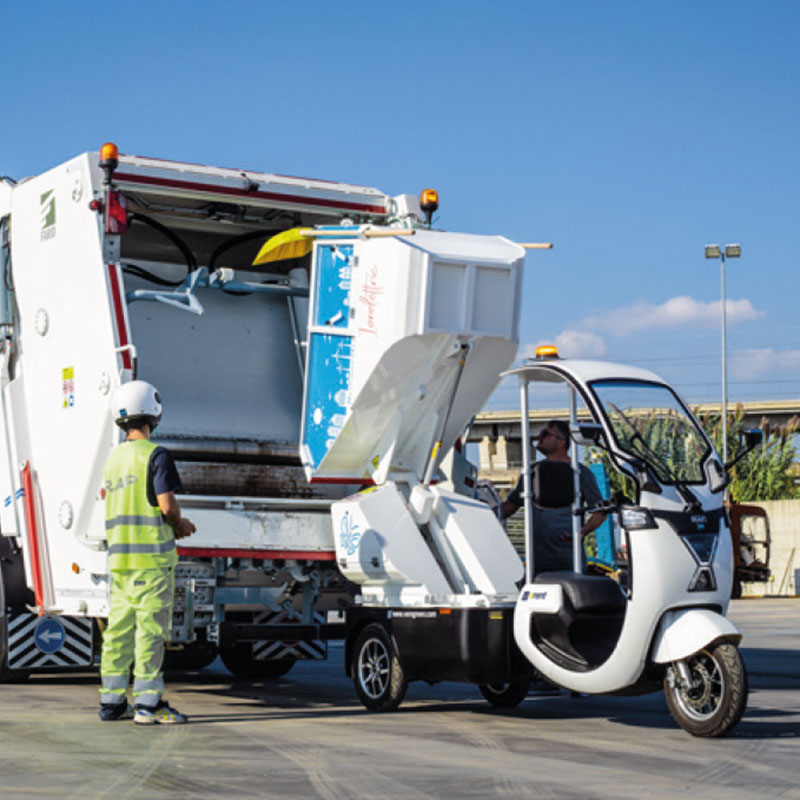

The tipper of the electric three wheeler is controlled by the latest radio technology, enabling the tipper to empty garbage within seconds. The tipper can operate at electric three wheeler with large capacity or with large containers. Equipped with side compartment for disinfectant, Ioneletric is ideal for garbage collecting.
2-3 axis waste compactorWaste spill
1m³Tank capacity
89°Maximum tank tilting angle adjusted by hydraulic cylinder
12 secondsTank unloading time
2-3 hoursCharging time
130 kgMax. load
90 kmRange
45 km/hMax. speed
Parameters
| Model | Ioneletric |
| Body size (L*W*H) | 2920*980*1850 mm |
| Wheelbase | 2240 mm |
| Tread | 820 mm |
| Ground clearance | 150 mm |
| Total mass | 266~256 kg |
| Loading mass | 130 kg |
| Tank capacity | 1m³ |
| Seats | 1 |
| Motor type | AC asynchronous motor |
| Rated power | 3.7 kw |
| Voltage | 73.6 V |
| Rated torque | 7.8 Nm |
| Battery type | LiFePO4 |
| Battery capacity | 6.992 kwh |
| Charger type | On board |
| Charging voltage | 110~240 V |
| Charging time | 2 - 3 hours |
| Transmission system | Automatic |
| Gears | Automatic control |
| Differential case | Yes |
| Drive type | Rear wheel |
| Tilting system | Yes |
| Front suspension | Hydraulic shock absorption fork |
| Rear suspension | Integral damping |

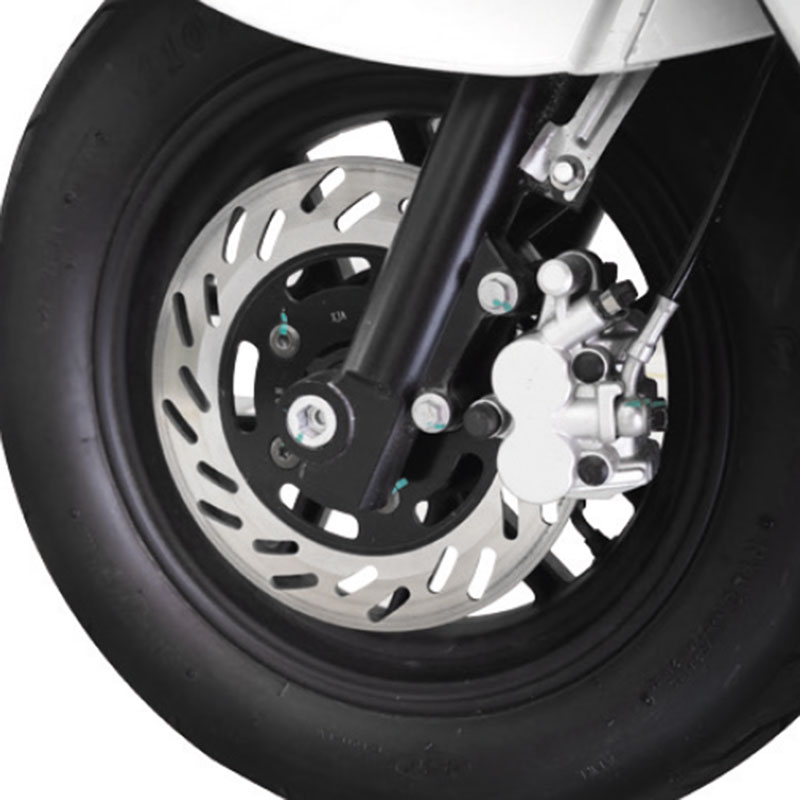

| Brake type | Dual disc/disc |
| Parking type | Handbrake |
| Tire | 110/90-12 |
| Max. speed | 45 km/h |
| Climbing capacity at full load | 20% |
| Range | Up to 90 km |
| Rear load sill height | 1686 mm |
| Unloading height | 1350 mm |
| Door dimensions | 550 x 500 mm |

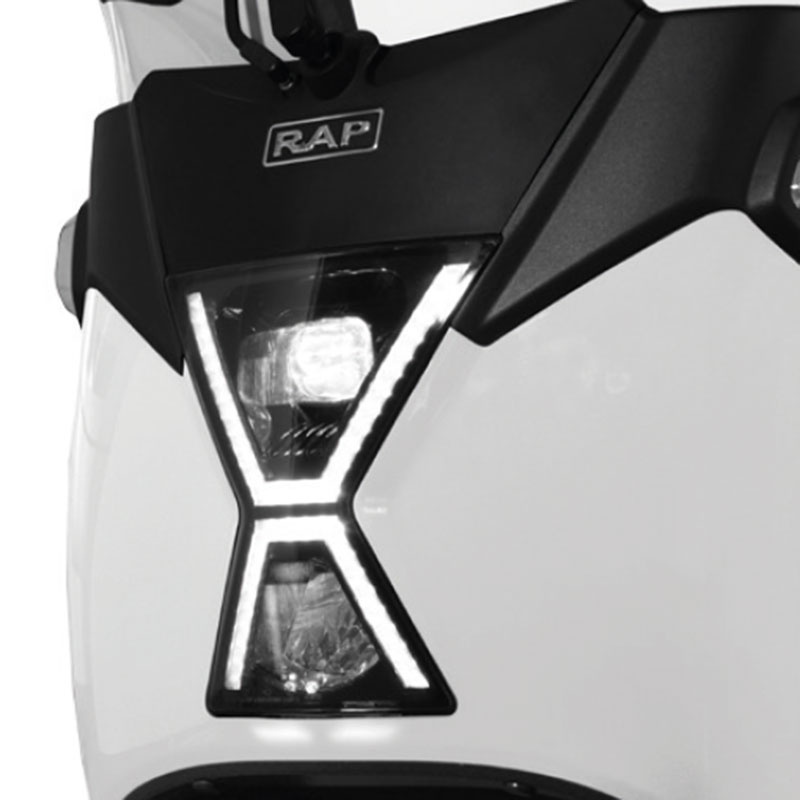

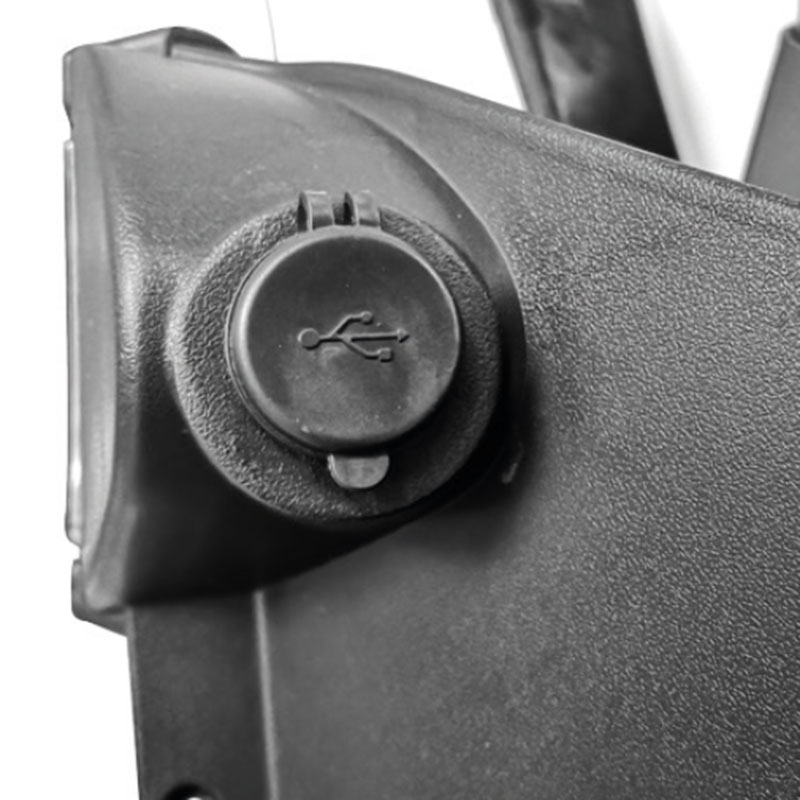

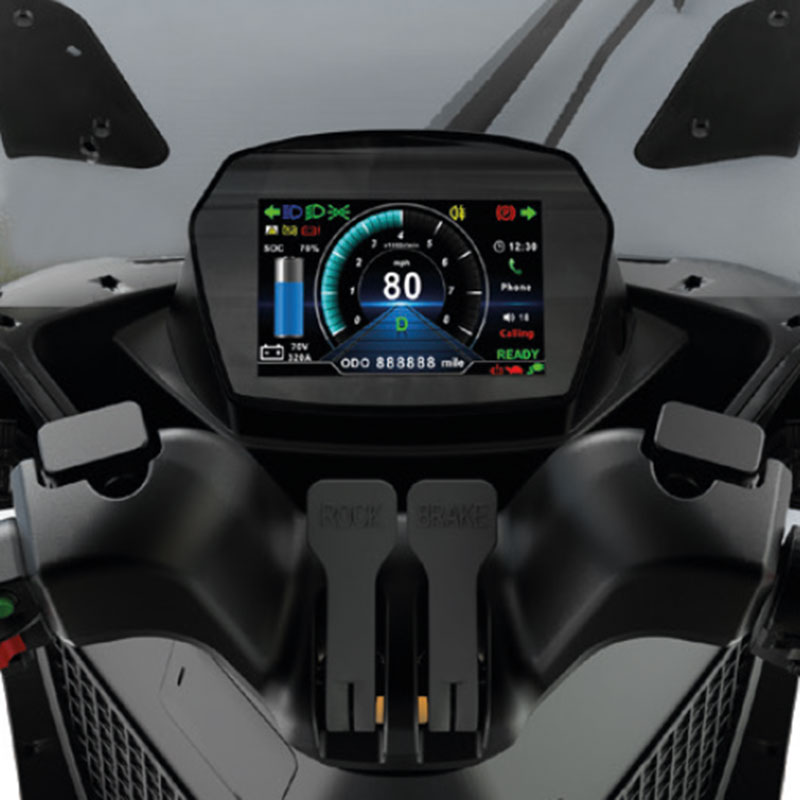

| Standard equipment | Alloy wheels Fog lights Windscreen wipers Rear view camera Central locking with remote control 7 inches central display with multimedia system LED lights 12V power/5V USB Theft protection Radio control with consent for tipper Storage compartment for work equipment Yellow light LED rotating beacon |
