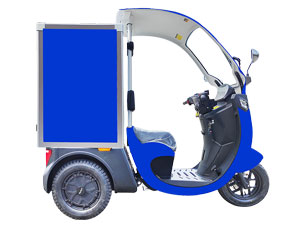

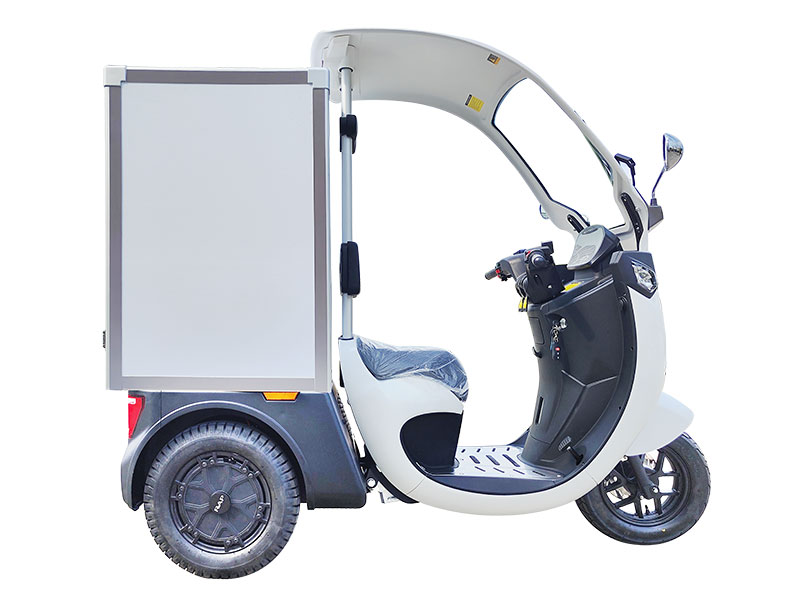

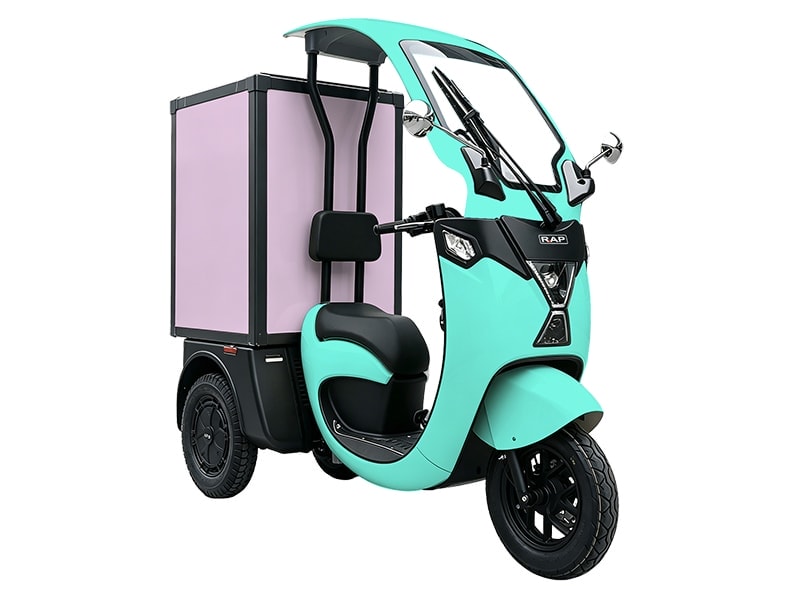

Light and fully electric, OAK II series 3 wheelers feature excellent mobility and comprehensive configuration that are as good and full as a car, while remaining as flexible as motorcycles. Compared with the Bange series electric 3 wheeler, this series has a smaller size with a larger volume of 500 L.
With better loading capacity and maximum speed than OAK series, the OAK II series electric 3 wheelers, produced to EEA standards, can carry goods as heavy as 115 kg and run at a speed ranging from 0-70 km per hour, which definitely will meet your demand to run at both fast tracks and slow lanes, maximizing delivery efficiency.

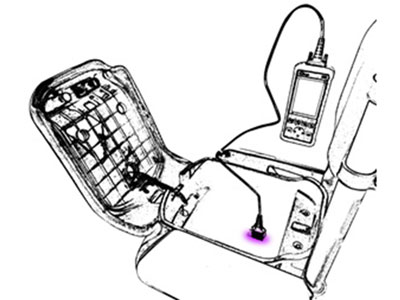

The OAK II series electric 3 wheelers have OBD (On-Board Automatic Diagnostic System) ports that provide a standardized series of diagnostic trouble codes, which allow drivers to rapidly identify and remedy malfunctions within the vehicle.

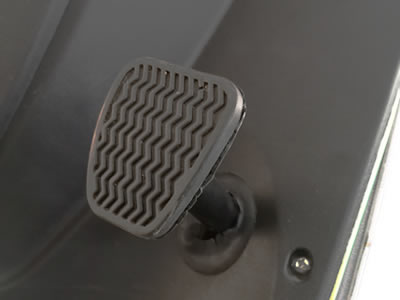

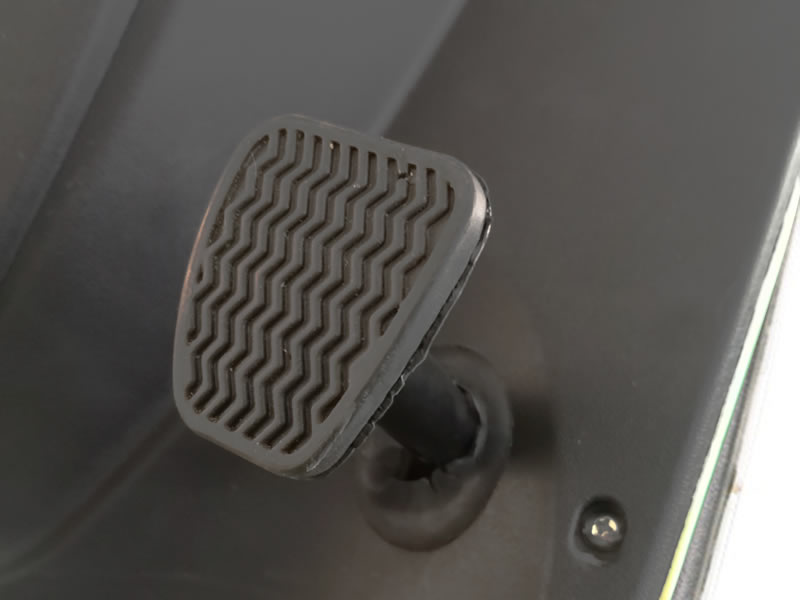

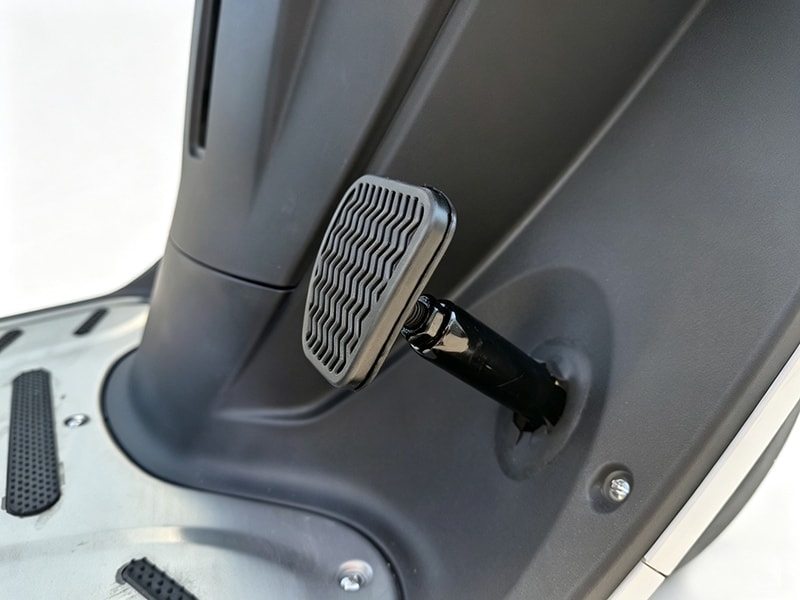

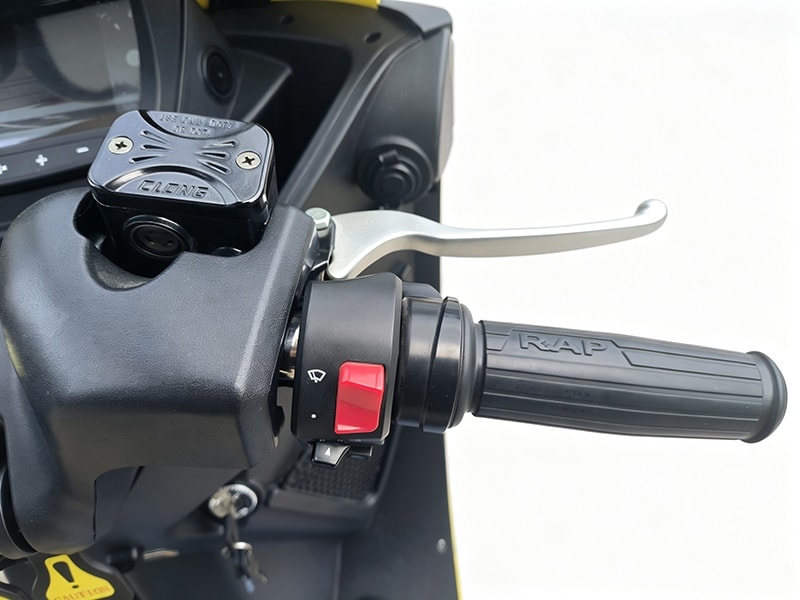

The OAK II series 3 wheelers are equipped with both handbrake and foot brake.

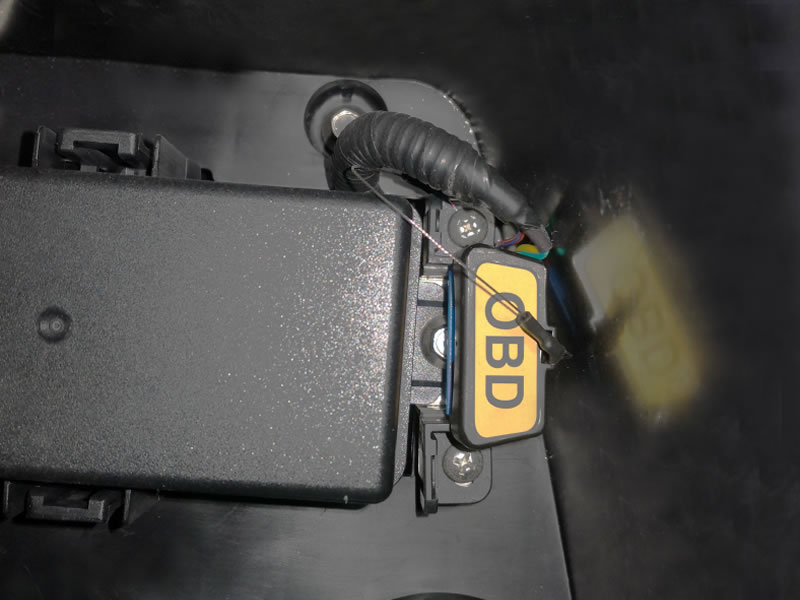

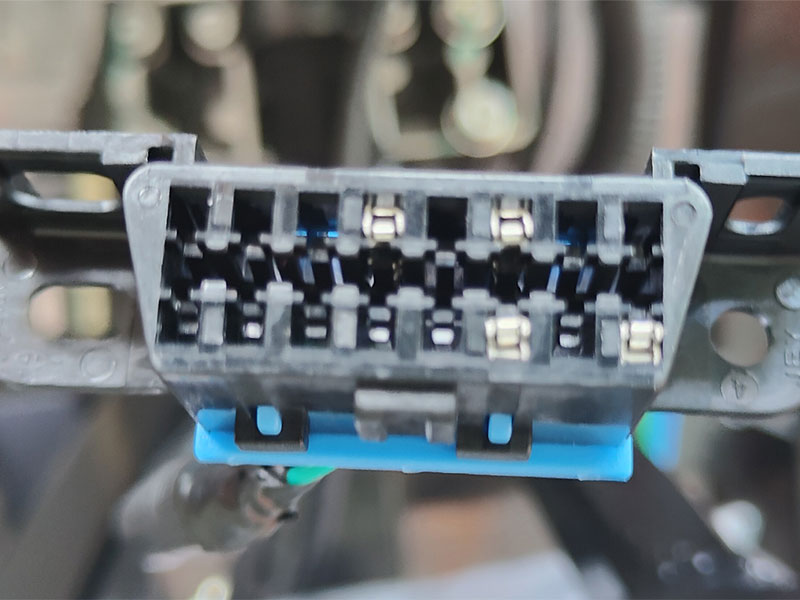

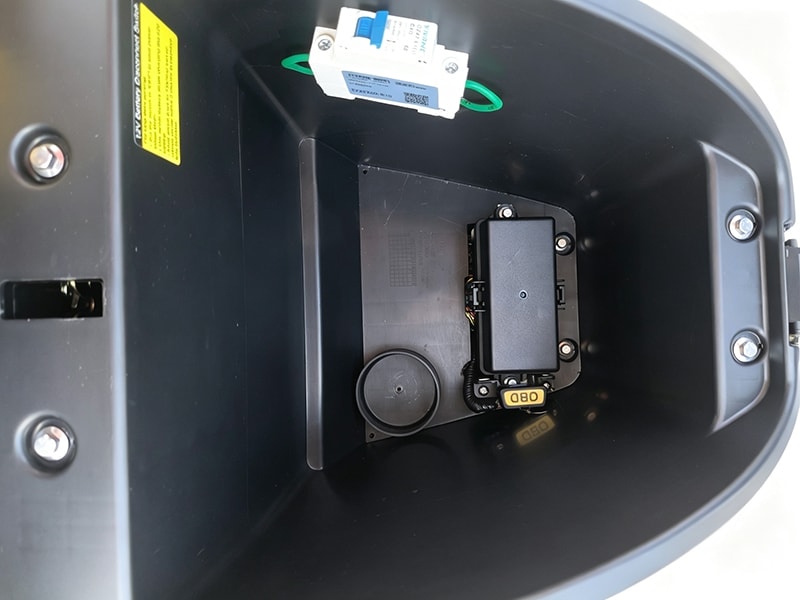

The OAK II series 3 wheelers are equipped with OBD ports that allow for rapid detection of malfunctions.

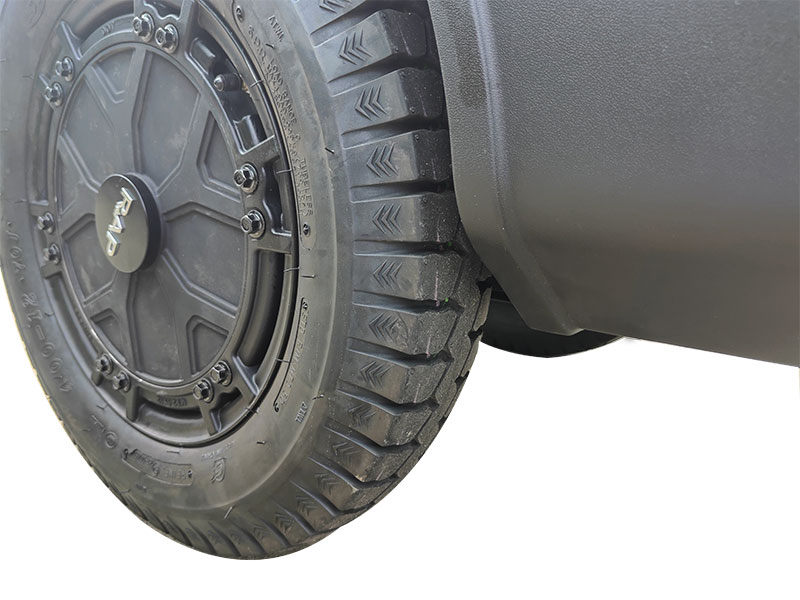

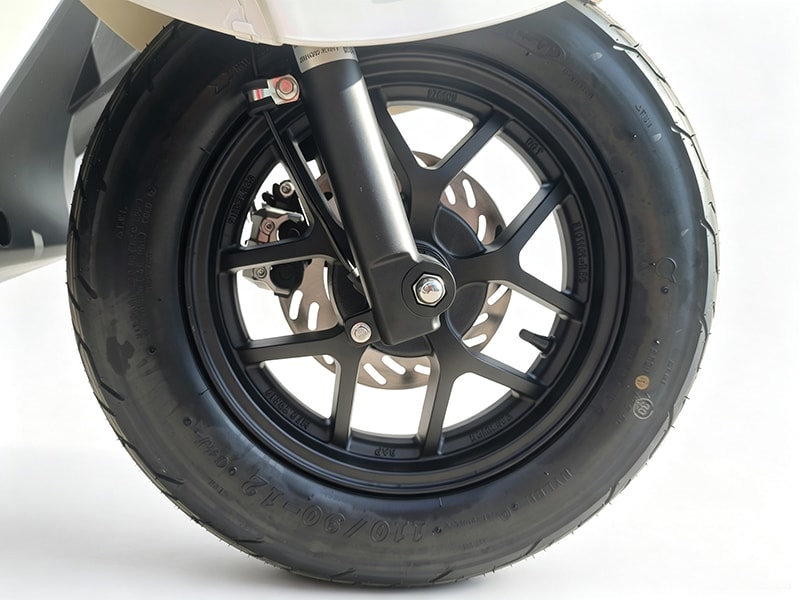

Low profile tires ensure stability at high speeds and improve steering sharpness

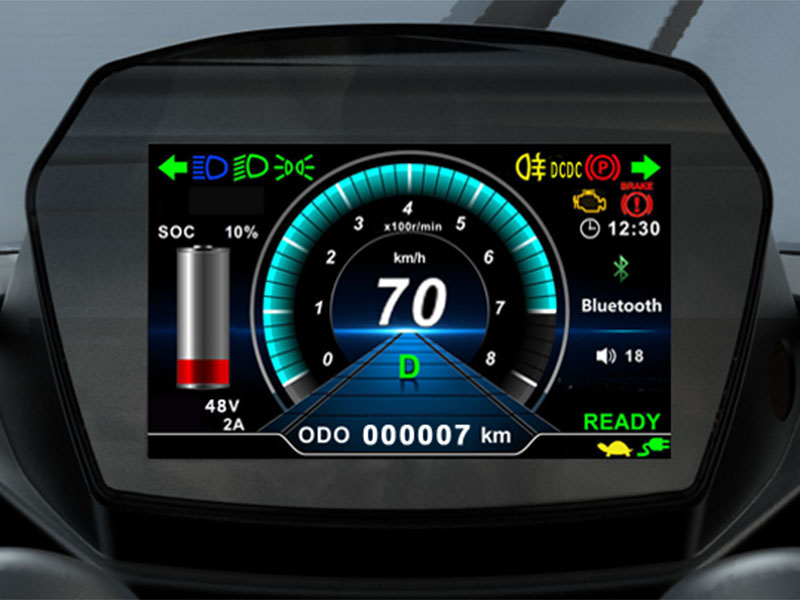

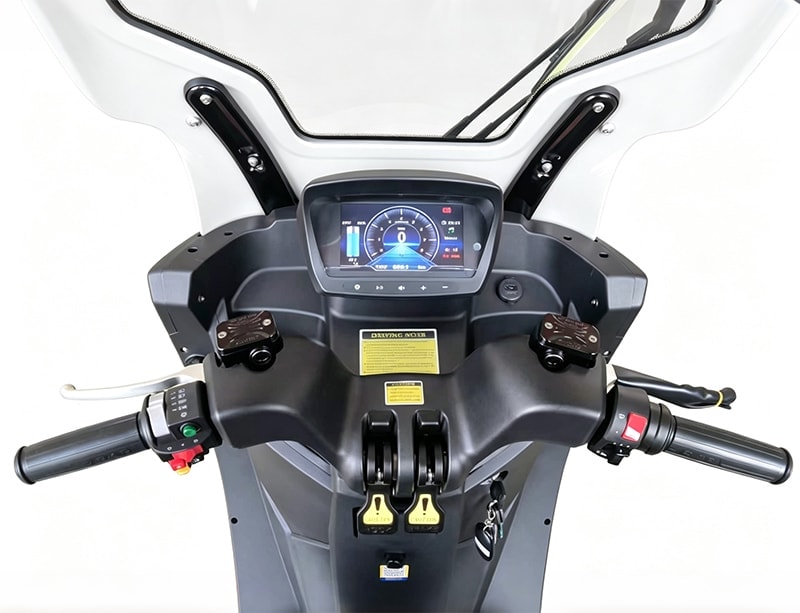

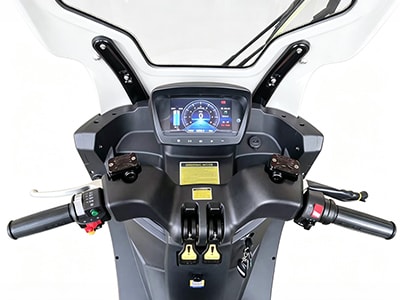

Improved dashboard features more functions
Performance
ModelOAKⅡ
TypeOAK II Series Electric 3 Wheeler
Vehicle classL5e-B

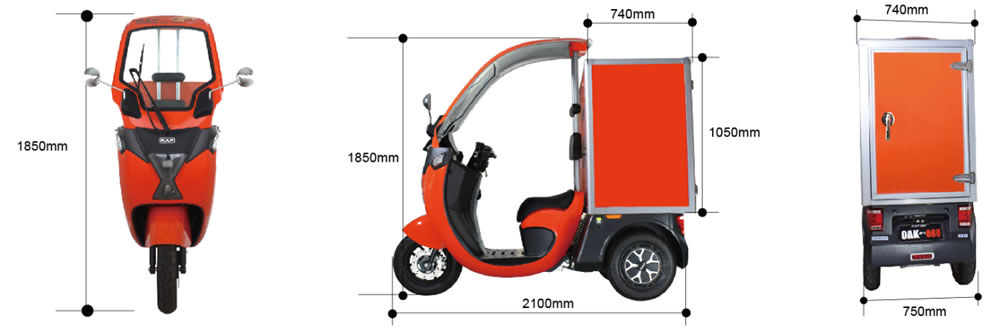

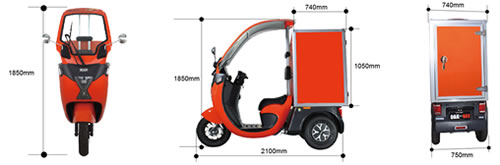

Body size (L*W*H)2100×750×1850mm
Ground clearance150mm
Total mass435Kg
Loading mass115Kg
Max. speed70km/h
RangeUp to 100km

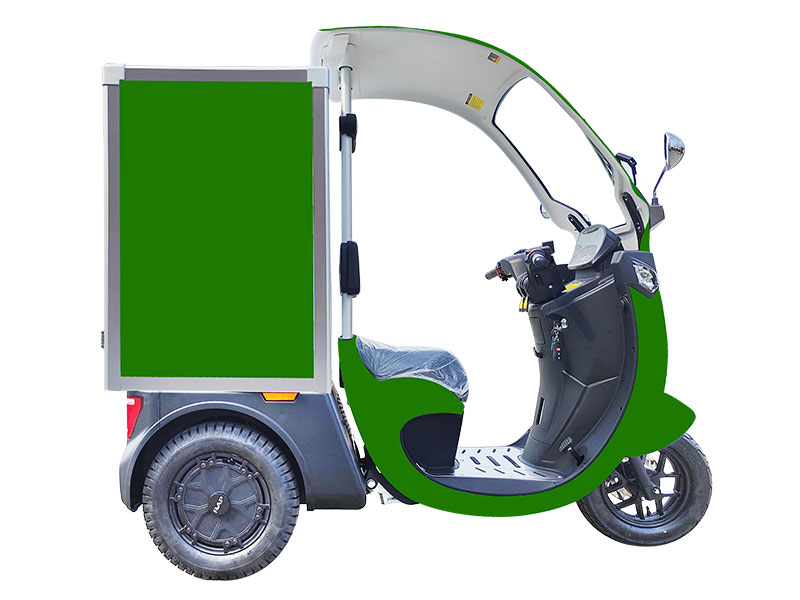

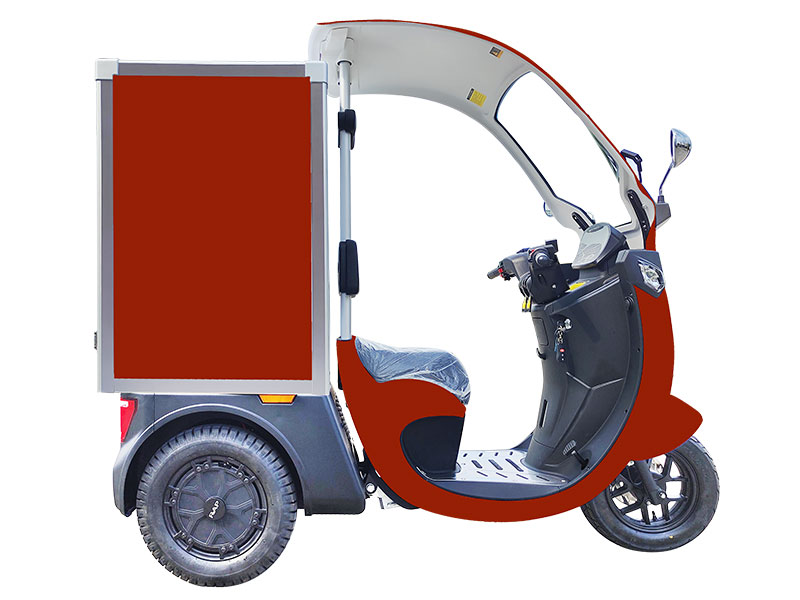

ColorCustomizable
Safety
Wheelbase1545mm
Tread625mm

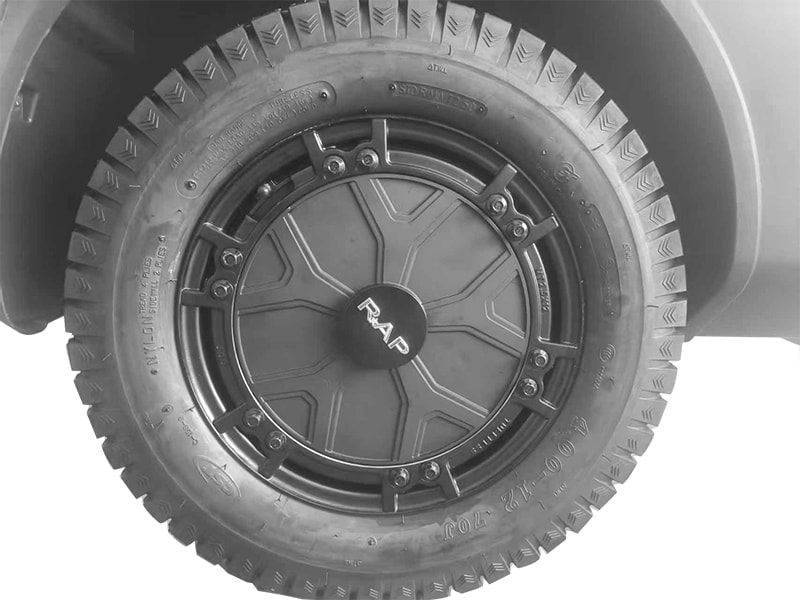

PowertrainRear dual hub motor
Transmission systemAutomatic
DifferentialElectronic differential
Drive typeRear wheel
Titling systemLH/RH 18 degree
Front suspensionHydraulic shock absorption fork
Rear suspensionBidirectional swing arm

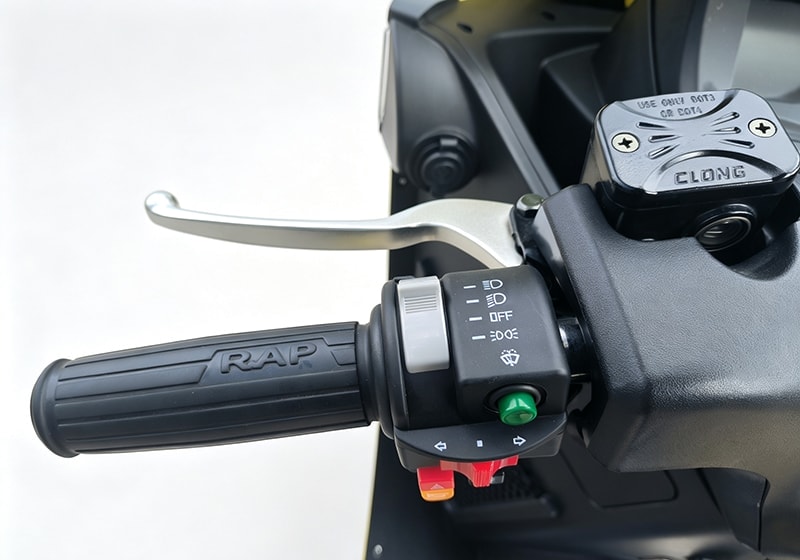

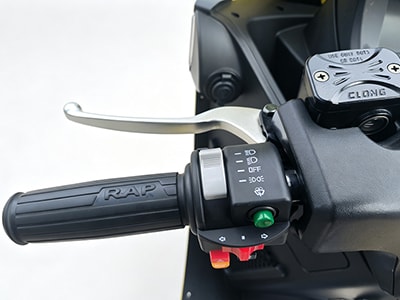

Brake system LH hand brake to front wheel, pedal brake to rear wheel

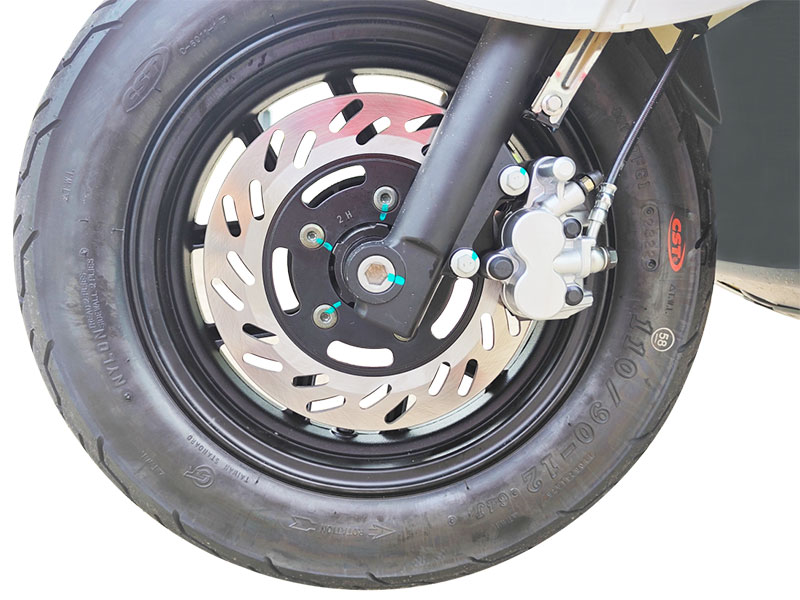

Brake type Hydraulic front/rear disc
Parking typeMechanical handle brake rear wheel
Tire110/90-12; 4.00-12
Climbing capacity，full load20%
Fault detectionOBD
Cargo Box
Type Honeycomb panel
Outline size (mm) 740*740*1050
Max. capacity (L) 500
Electric Machinery
Motor typeDC permanent magnet synchronization
Rated power3x2Kw
Rated torque40x2Nm
Fleet management connectorYes

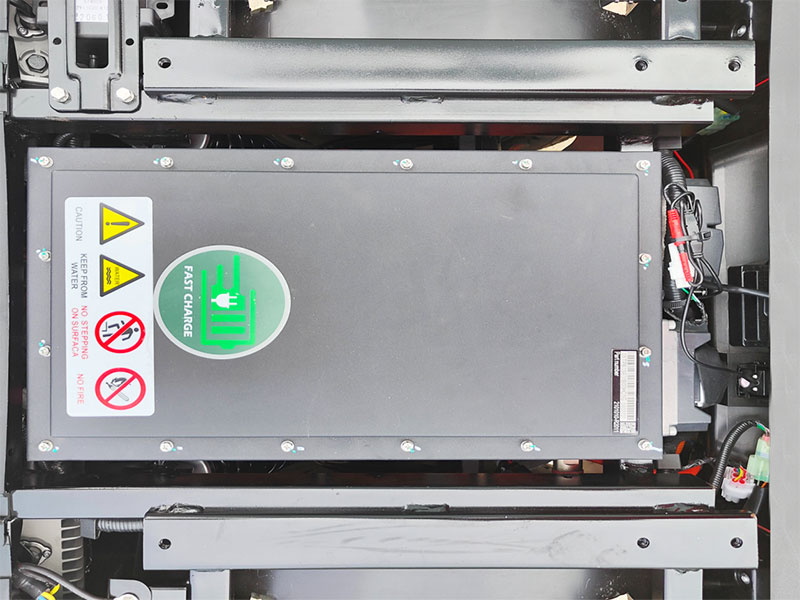

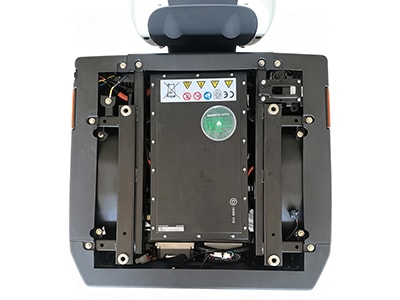

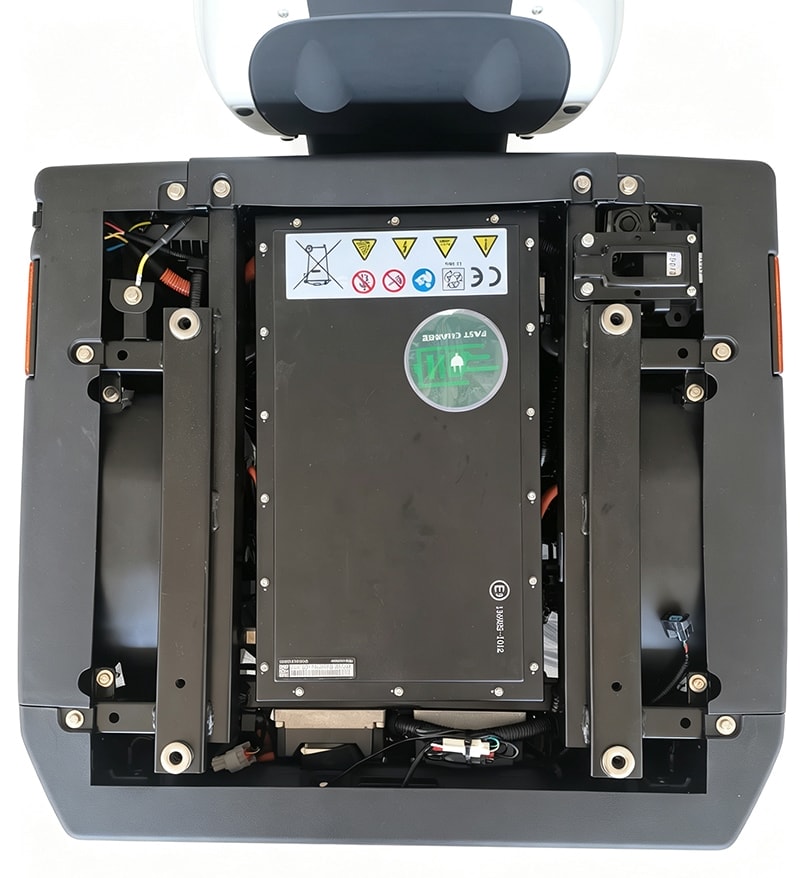

Battery
Battery typeLifePO4
Voltage
51.2V
Battery cell capacity95Ah
Battery capacity4.864kWh

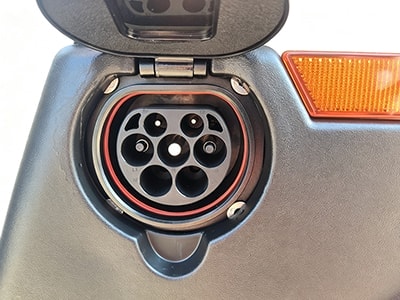

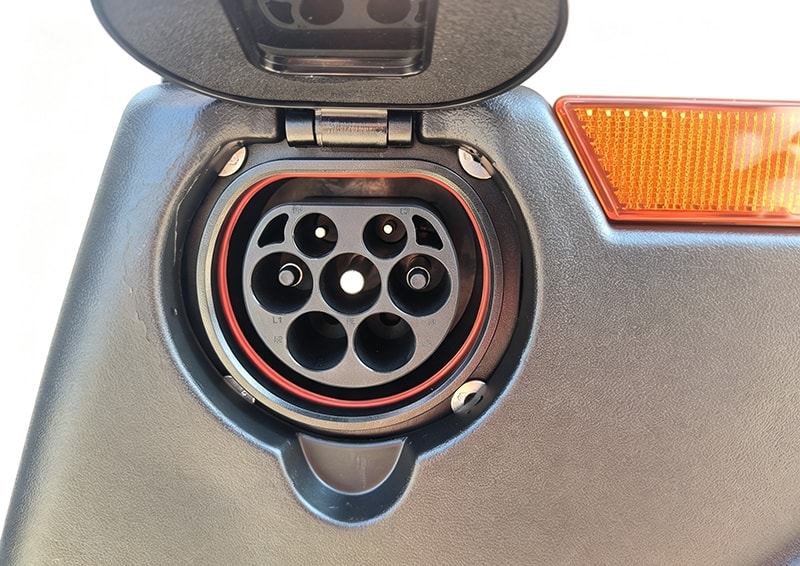

Charger

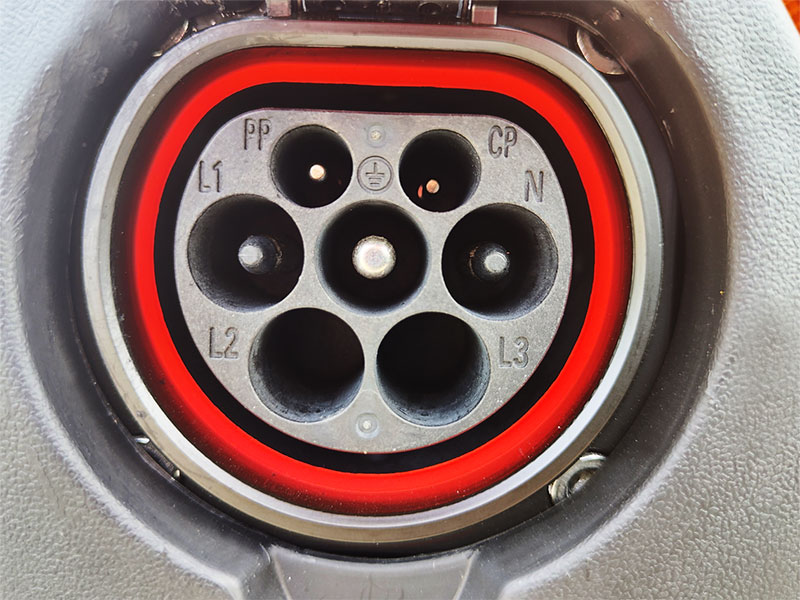

Charger typeOn board
Charging voltage205-265V
Charging time 20%-80%: 1.5 h; 0%-100%: 3h
Specifications
Aluminum alloy wheelFog lamp
Laminated windshield with wiperRear camera
Remote key7 inch LCD with media system

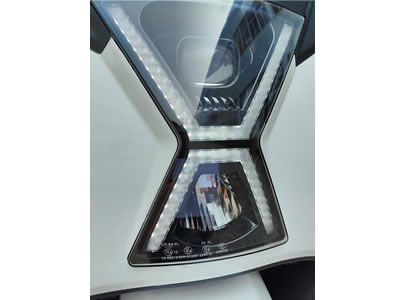

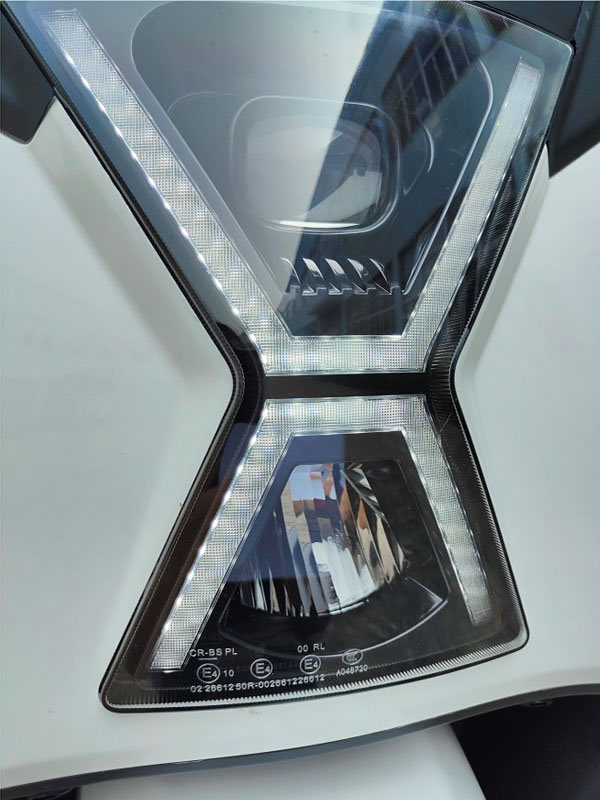

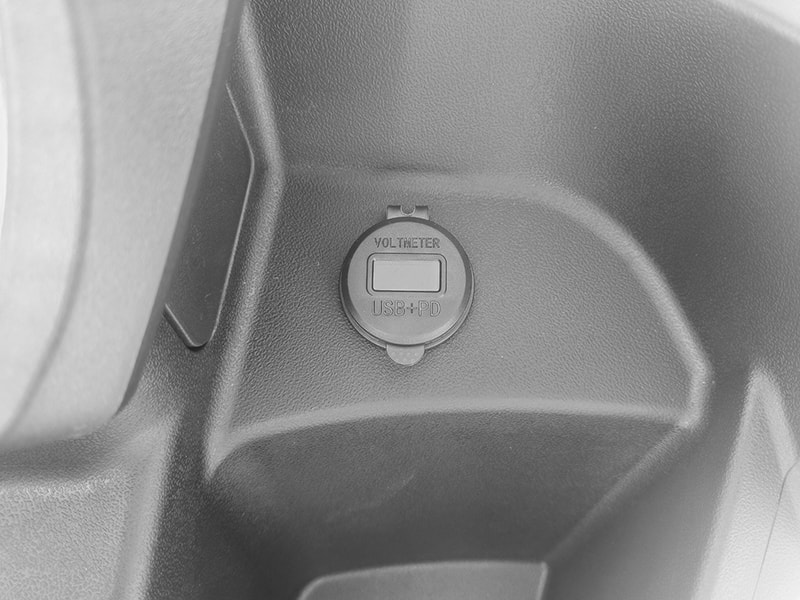

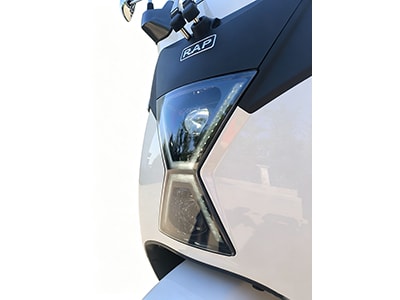

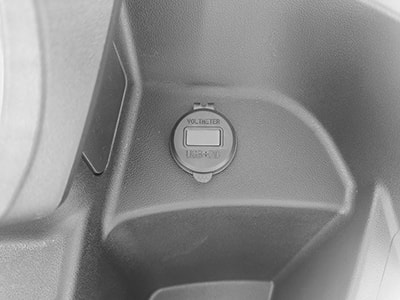

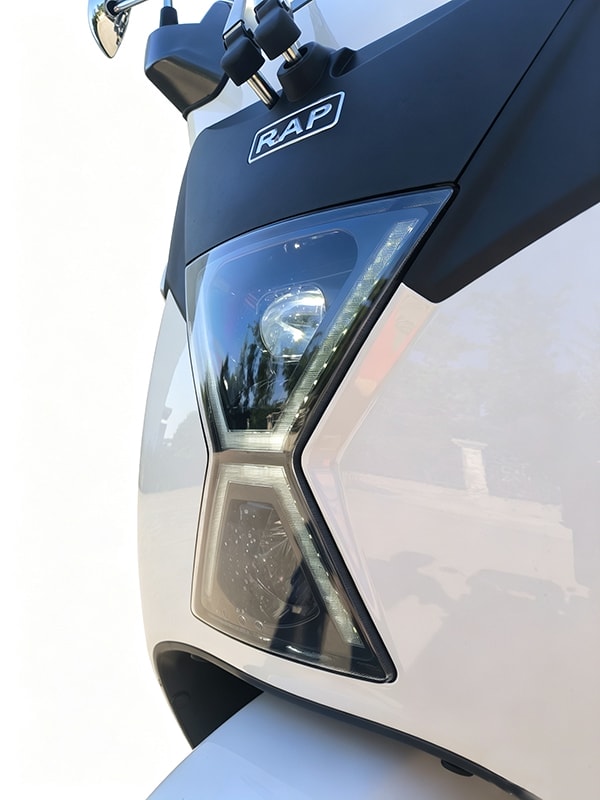

LED lamp12V power/5V USB
Anti-theft alarmCargo box
Accessories
Tools bagReflective vest
Charging cableMobile support
ExtinguisherWarning triangle
Gallery
Heat insulation automotive glass offers significant heat reduction by rejecting up to 99% of UV and 85% of infrared rays. Download
Custom Commercial Electric 3 Wheeler

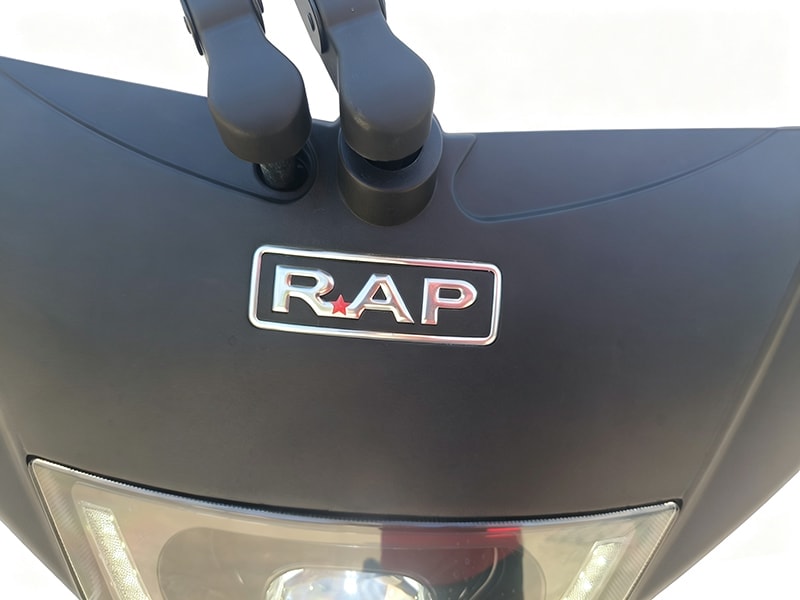

RAP SEV could provide different customization solution including vehicle color, logo, multiple layer structure of container, and rear parts types to meet the requirement of customers.

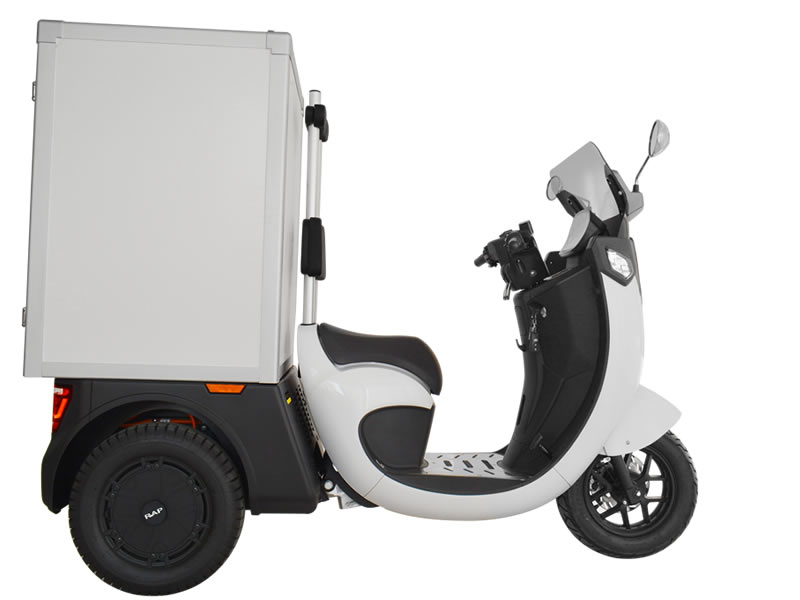

In compliance with certain countries' regulations that restrict the inclusion of a roof on electric wheelers with a maximum speed of 70km/h, we are able to offer a roofless version of the OAK II Series Electric 3 Wheeler.
