Three Wheeler Cargo Truck
Three Wheeler Cargo TruckHeightened version Three Wheeler Cargo TruckHeightened version Three Wheeler Cargo TruckHeightened version Three Wheeler Cargo TruckStandard version Three Wheeler Cargo TruckStandard version Three Wheeler Cargo TruckStandard version Three Wheeler Cargo TruckStandard version Three Wheeler Cargo TruckStandard version

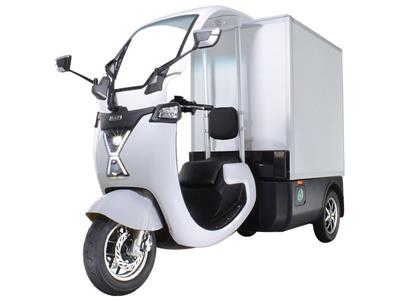

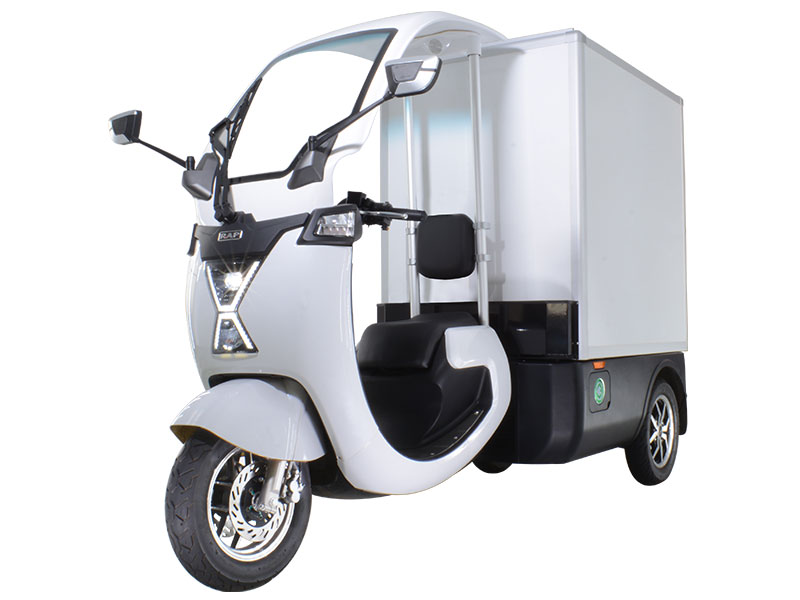

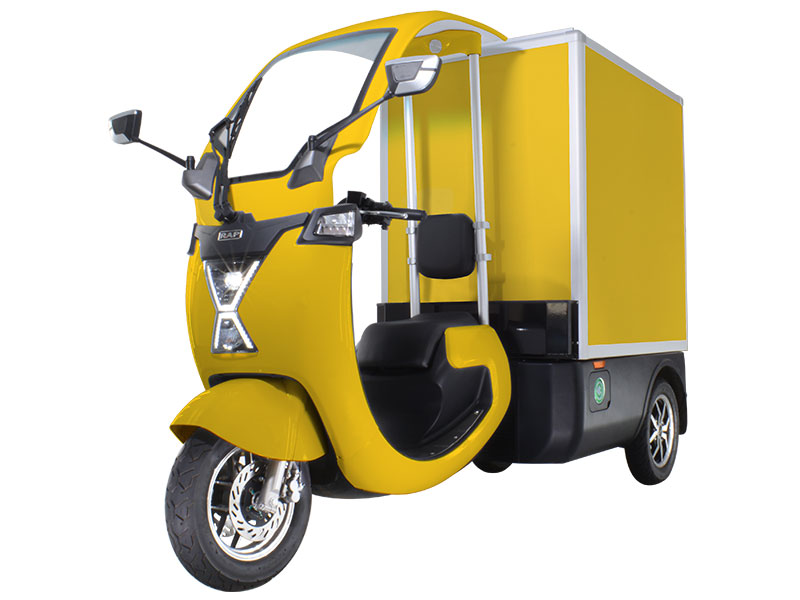

Three Wheeler Cargo Truck

RAP SEV is committed to easy commercial delivery applications and fleet use of three wheeler cargo trucks. It is used for transfer and delivery of express services or supermarkets with an overall size of 2920×980×1850mm and volume of 1400/1600L.

The three wheeler cargo truck is reliable and light with an aluminum alloy bearing structure and honeycomb panel. The front of the vehicle freely tilts at 18 degrees, while the rear wheels that support the container move with it. According to different container standard sizes, we also create corresponding compartments for these containers to allow for easy placement.

  • Container volume: 1400/1600L
  • Load capacity: 250kg
  • Range, 30Km/h, unload: 110km
  • Power: Lithium battery
  • Charge time: 6-8 hours
Video
Parameter
Performance
    • Body size (L*W*H)
      2920×980×1850mm
    • Curb weight (no battery)
      260kg
    • Total mass
      685kg
    • Swing angle
      ±18°
    • Range, 30Km/h, unload
      110km
    • Min. ground clearance (no load)
      150mm
Battery
    • Battery type
      lithium iron phosphate
    • Battery weight
      100kg
    • Voltage
      73.6V
    • Nominal battery voltage
      95ah
    • Nominal battery energy
      6.992kwh
    • Max. Charging time
      8h

Electric machinery
    • BSD DC Brashless
      AC asynchronous motor
    • Min. Steering radius
      3.5m
    • Motor power
      3.7kW
    • Peak power
      4.9kW
    • Rated torque
      7.8Nm
    • Peak torque
      45Nm
    • Rated RPM
      4640rpm
Container
    • Material
      Light honeycomb container
    • Body size (L*W*H)
      1300*940*1250mm(Heightened version)/1400*980*1050mm(Standard version)
    • Volume
      1600L(Heightened version)/1400L(Standard version)
    • Loading mass
      250kg

Safety
    • Wheelbase
      2240mm
    • Tread(rear)
      820mm
    • No-load axle load distribution(F/R)
      124/288kg
    • Full load axle load distribution(F/R)
      180/420kg
    • Driven type
      Rear-wheel drive
    • Tire (F)
      110/90-12
    • Tire (R)
      110/90-12
    • Air pressure
      250kpa

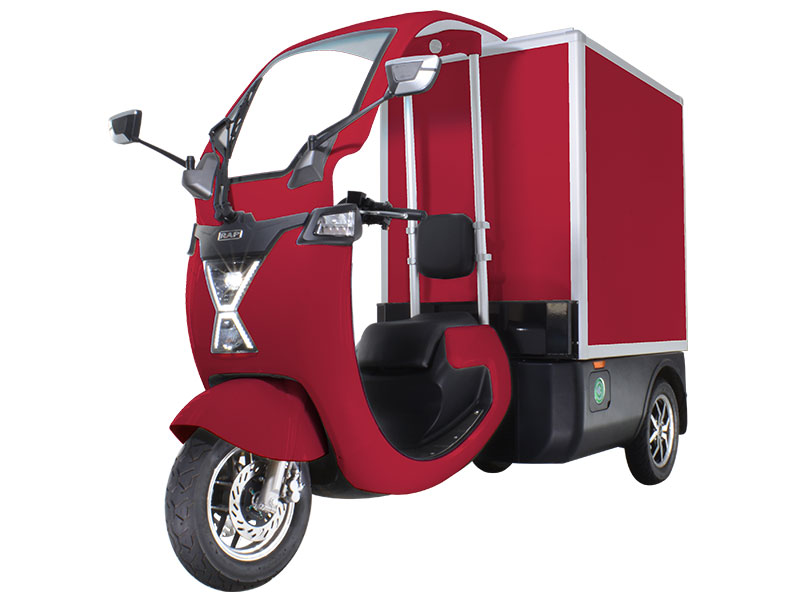

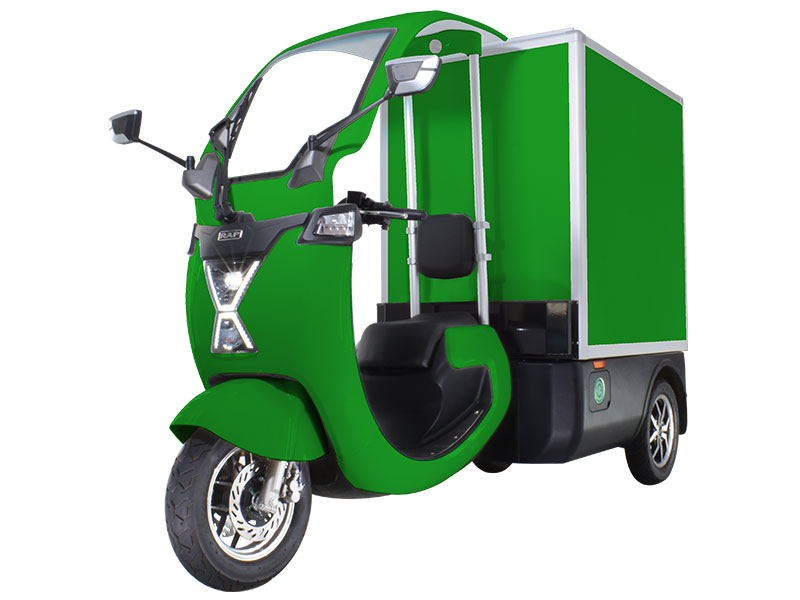

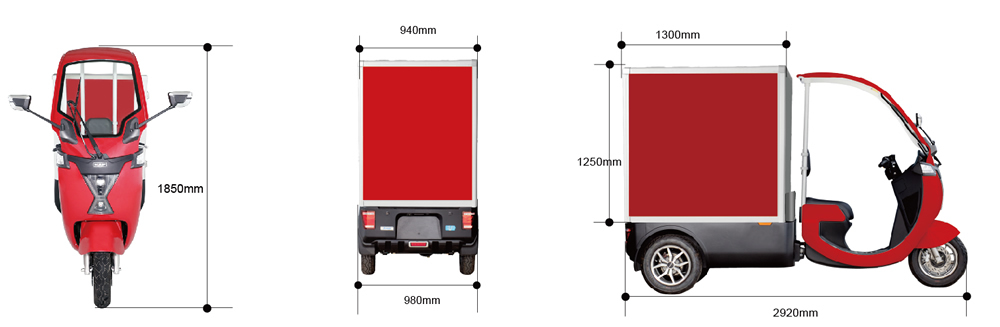

Three Wheeler Cargo TruckHeightened version

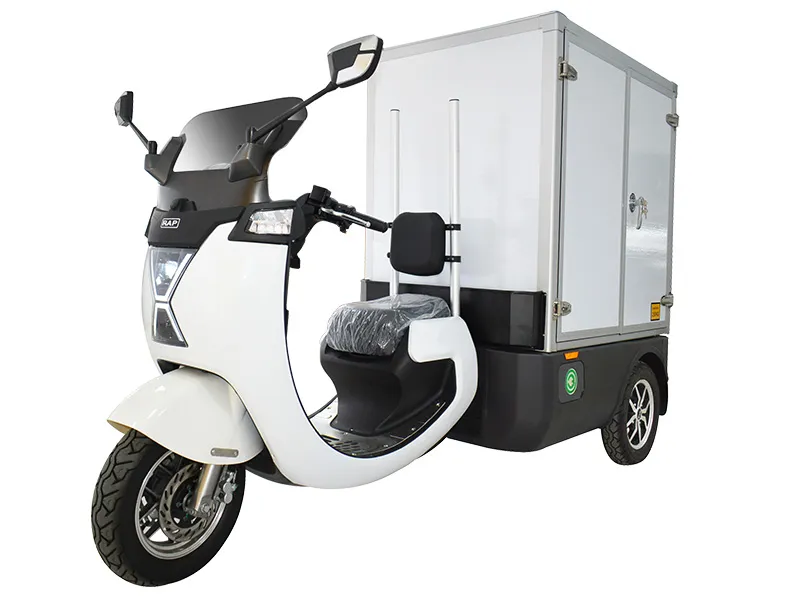

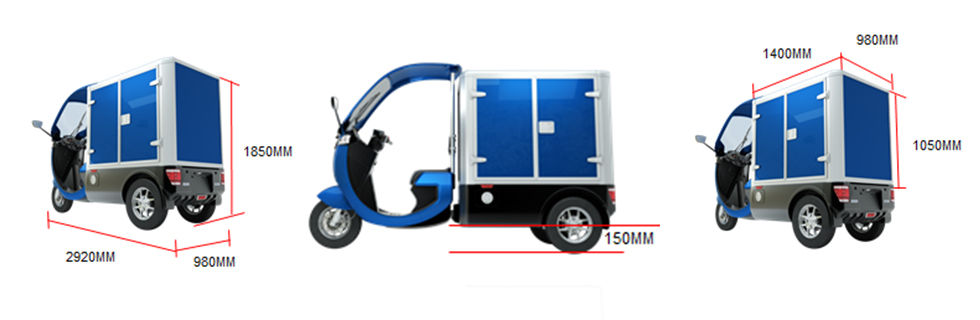

Three Wheeler Cargo TruckStandard version

Characteristic
  • Mobility
    • The Bange series three wheeler cargo truck features an excellent driving and parking mobility, with a width of only 980mm, nearly half that of an ordinary sedan. Due to its small size, this three wheel cargo vehicle easily moves through narrow streets.
  • Flexibility
    • The Bange series three wheeler cargo truck features a variety of applications with its modular designed chassis, allowing the rear half to be flexibly combined with a container, flatbed, refrigerator, and other components.
  • Capacity
    • The maximum volume is 1400/1600L.
    • The maximum capacity is 250kg(Lithium battery).
  • Battery
    • The Bange series three wheeler cargo truck uses a lithium phosphate battery with a 2000 charge service life, and can be charged freely as it has no memory effect.
    • This electric three wheeler is able to finish daily deliveries easily, as it requires only 6 to 8 hours to fully charge, with a driving mileage of over 90km at full load.
    • Lithium phosphate batteries are a stable and safe choice, and are exceptionally safe for long term use.
  • Power
    • The Bange series three wheeler cargo truck meets EEC standards with an initial speed of no more than 45km/h. This not only meets urban speed needs, but also saves unnecessary energy consumption. We can also customize higher speed requirements based on customer requirements.
    • The driving motor is an AC asynchronous motor that offers a stable, reliable power.
Fast charging
  • Three Wheeler Cargo Truck
    Shared charging station
  • Three Wheeler Cargo Truck
    Home Charger
    • Standard for socket and charging gun of shared charging station: IEC62196-2; standard for charging station: IEC/EN 61851
    • Each 3 wheel electric cargo scooter is delivered with a charger, providing fast charging in a convenient manner.
Download
Fast charging Slow charging
Max. input current ≤16A ≤7.5A
Rated power 3000W 1000W
Output current 40A 15A
Conversion efficiency at maximum power output ≥92% ≥90%
Working temperature (℃) -40~65 -25~55
SOC0-SOC100% charging time (h) 3.5 8
SOC20%-SOC90% charging time (h) 2 6
    Three Wheeler Cargo Truck
  • Stability

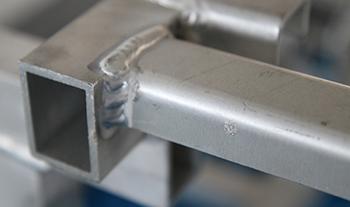

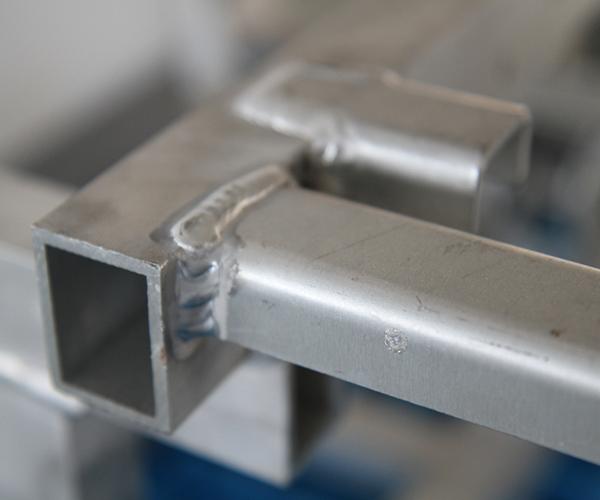

    • The frame of Bange series three wheeler cargo truck is made of high strength Q235 carbon steel and welded with a CO2 electric arc welder, which ensures the stability and durability of the three wheeler cargo truck during long term use.
    • Three Wheeler Cargo Truck
  • Safety

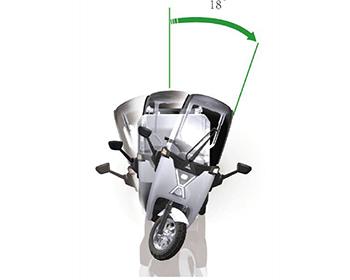

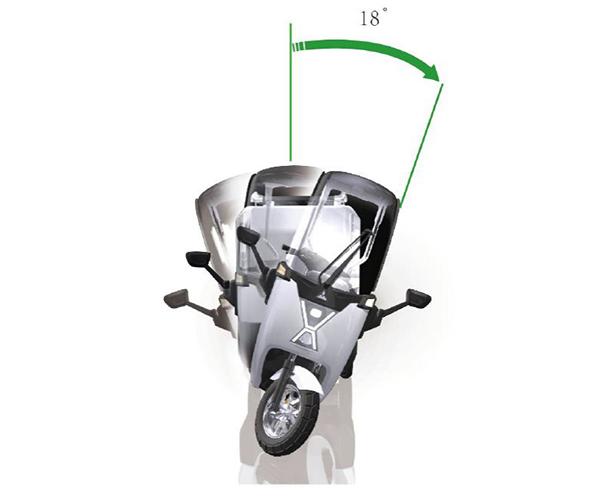

    • The cab is controlled by the front wheel of the scooter, and it freely tils within 18 degrees to effectively prevent roll overs when rounding curves. This ensures both cargo and driver safety, and provides the same fun driving experience a two wheeled scooter does.

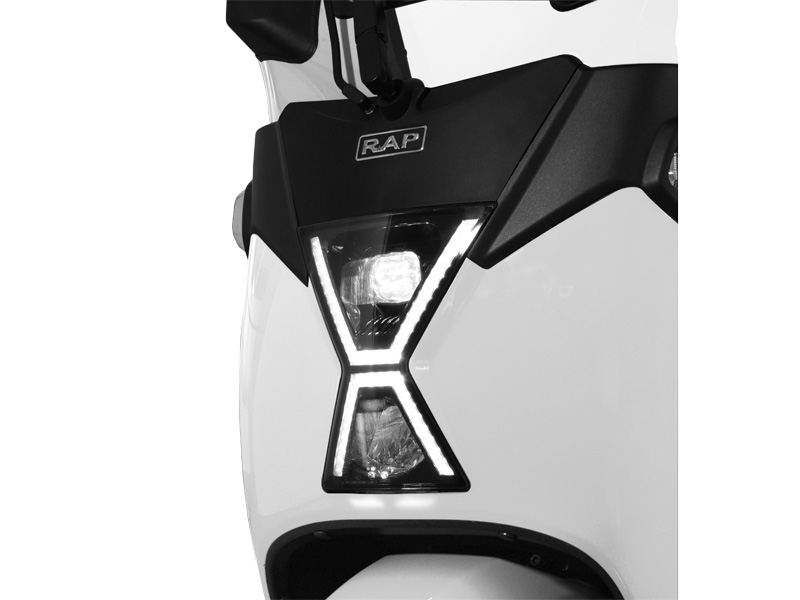

    • This three wheeler uses hourglass super-bright LED headlights with the same brightness and precision as automotive headlights, thus ensuring driving safety during both daylight and at night.
    • Three Wheeler Cargo Truck
  • Comfort
    • The seat in the cab is soft and comfortable because it is made of PU and ergonomically designed.
    • It is easy to find a comfortable position on the seat, because it features a headrest on the back, and is freely adjustable and attached using 4 clips.
    • The cab designed load bearing capacity is up to 85kg, which suits most driver body types.
    • Three Wheeler Cargo Truck
  • Intelligence

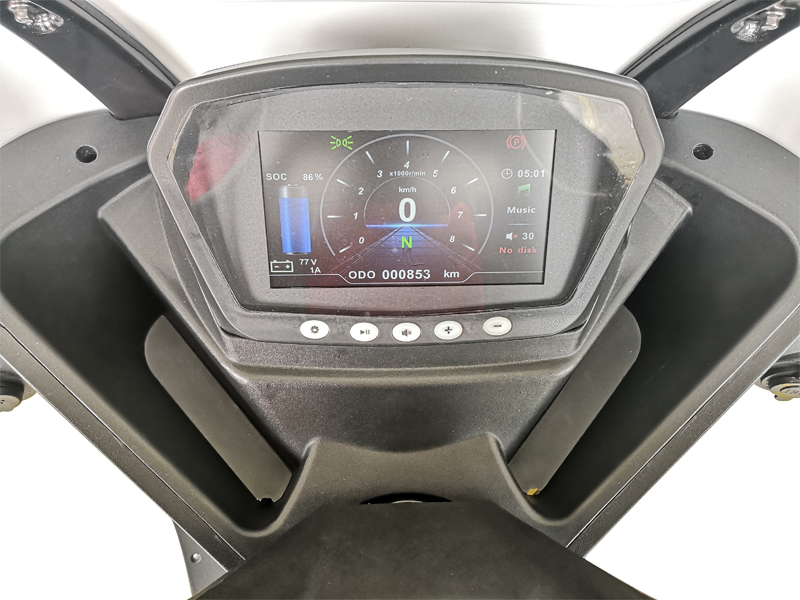

    • The Bange series 3 wheel electric cargo scooter uses a 7 inch TFT liquid crystal display that is fully designed according to automobile standards, with a full range of functions and a fully intuitive information display.
    • The scooter can be connected to an app on your cell phone to display a variety of information, including the scooter status, real time location, fault diagnosis, light control, theft prevention, and alarm.
    • This scooter features audio and visual capabilities simply by connecting cell phone blue tooth services.
Gallery

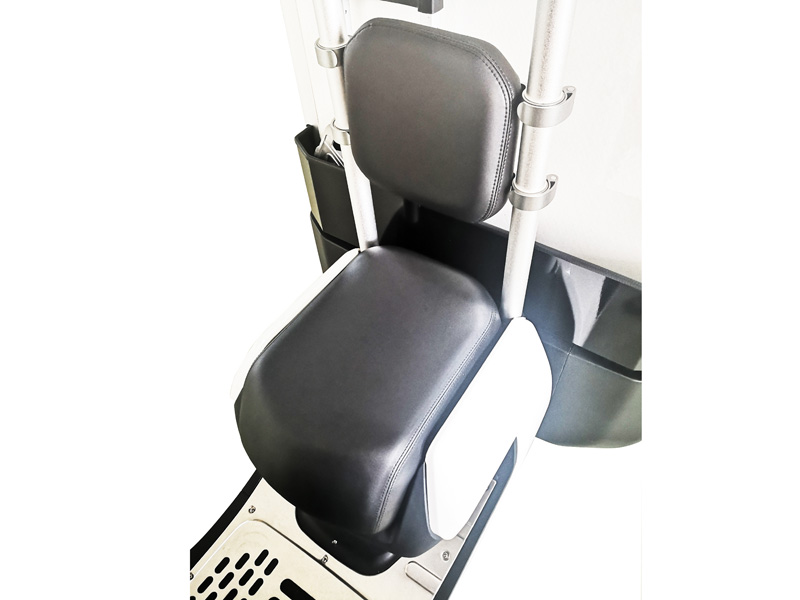

  • Seat
    Seat

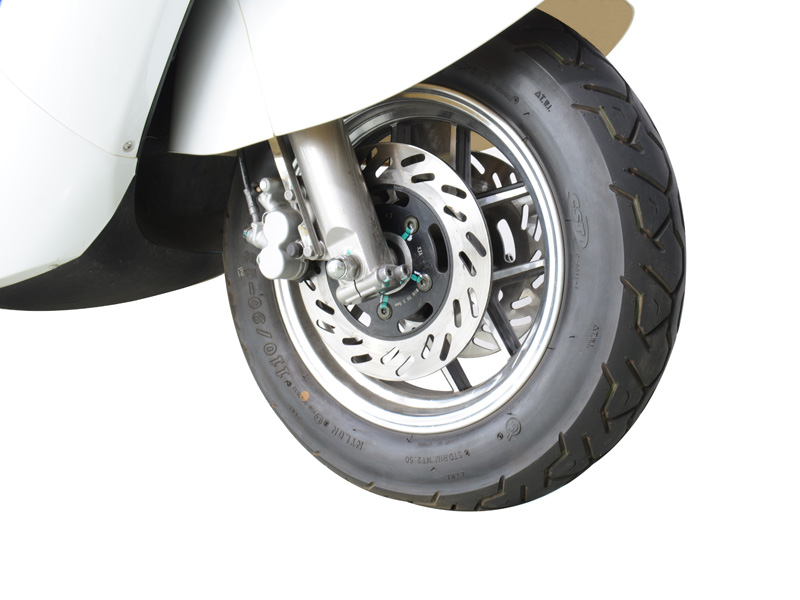

  • Front wheel disc brake
    Front wheel disc brake

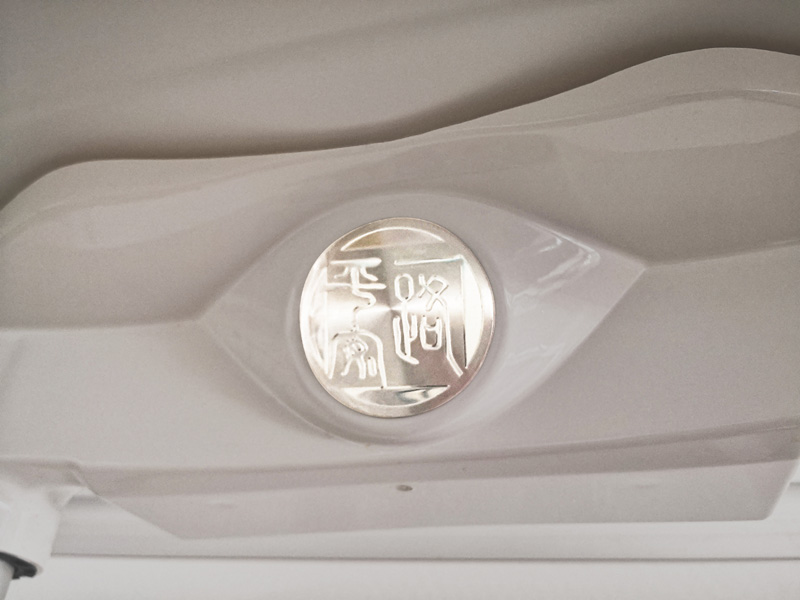

  • Chinese Calligraphy Safe Journey
    Chinese Calligraphy Safe Journey

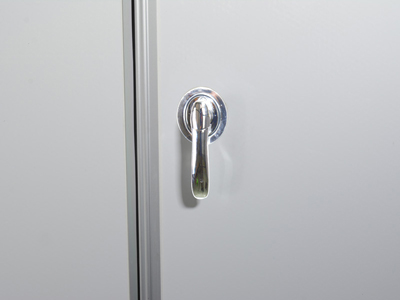

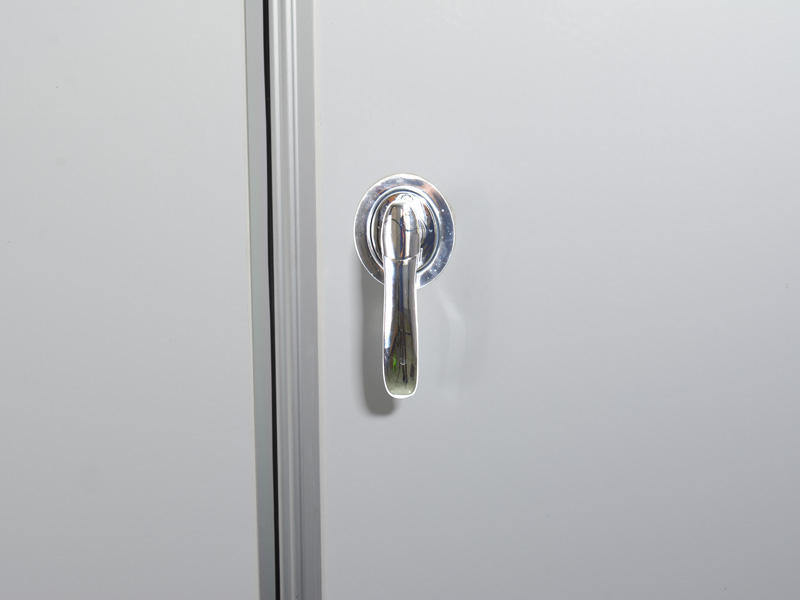

  • Container door handle
    Container door handle

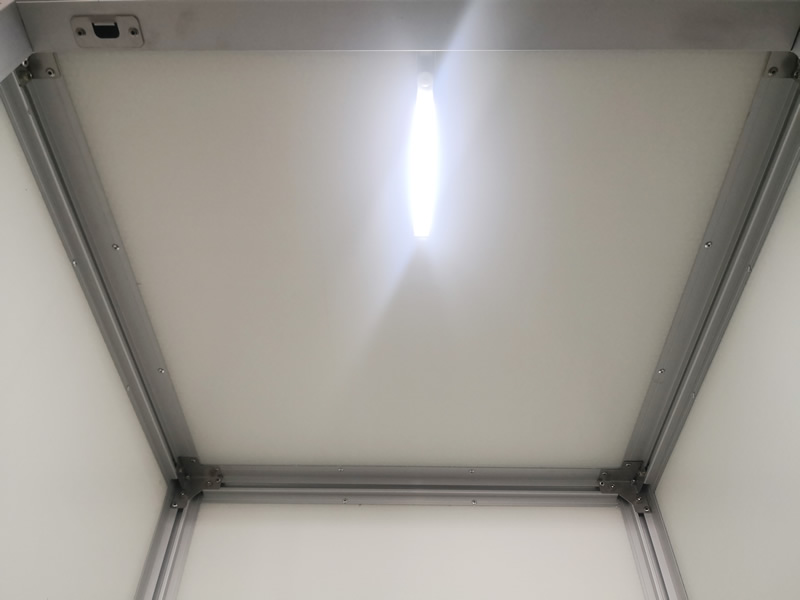

  • LED in container
    LED in container

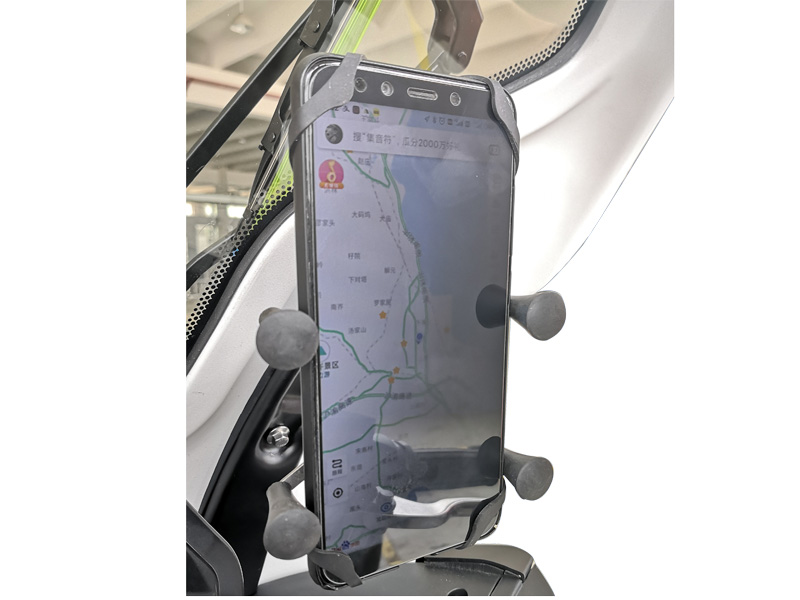

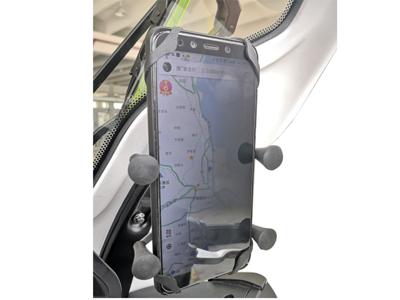

  • Phone mount holder
    Phone mount holder

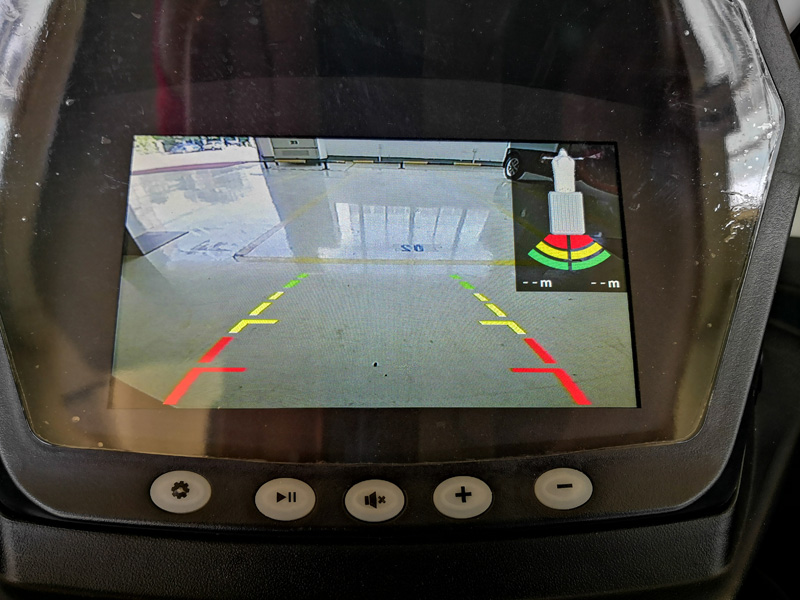

  • Display screen –reversing camera display
    Display screen –reversing camera display

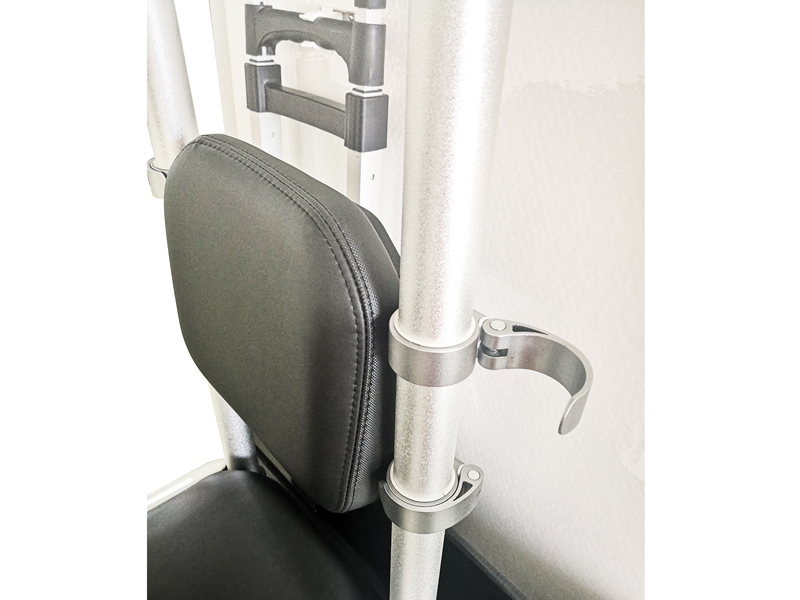

  • Seat headrest adjuster
    Seat headrest adjuster

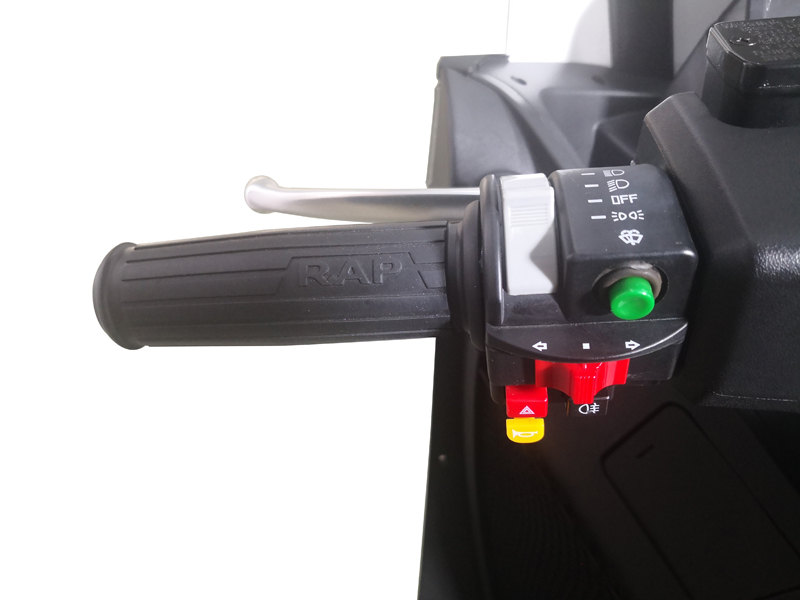

  • Left handlebar
    Left handlebar

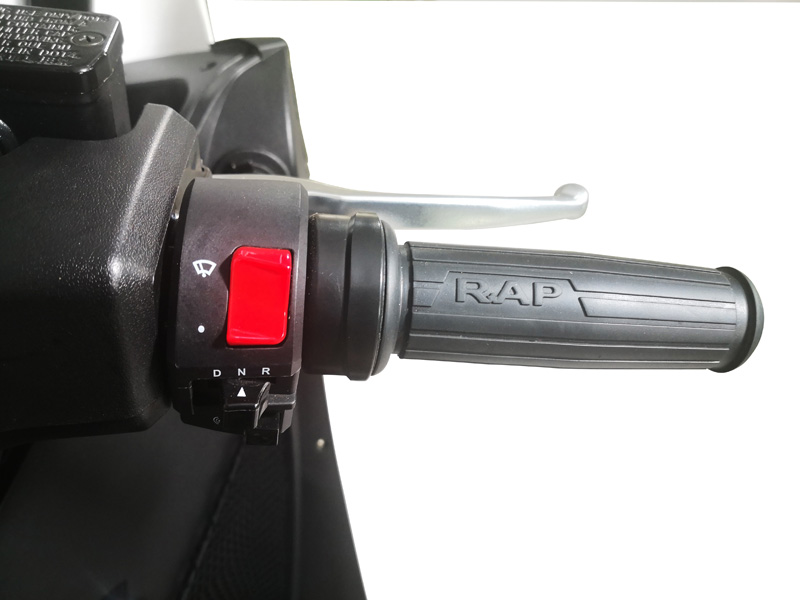

  • Right handlebar
    Right handlebar

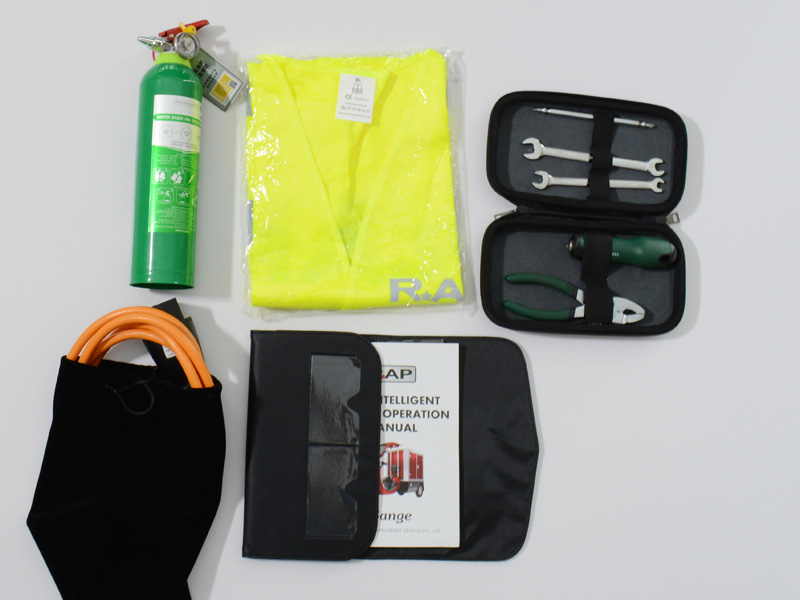

  • Tools
    Tools
  • Headlights + running lights
    Headlights + running lights
  • Car storage net pocket
    Car storage net pocket

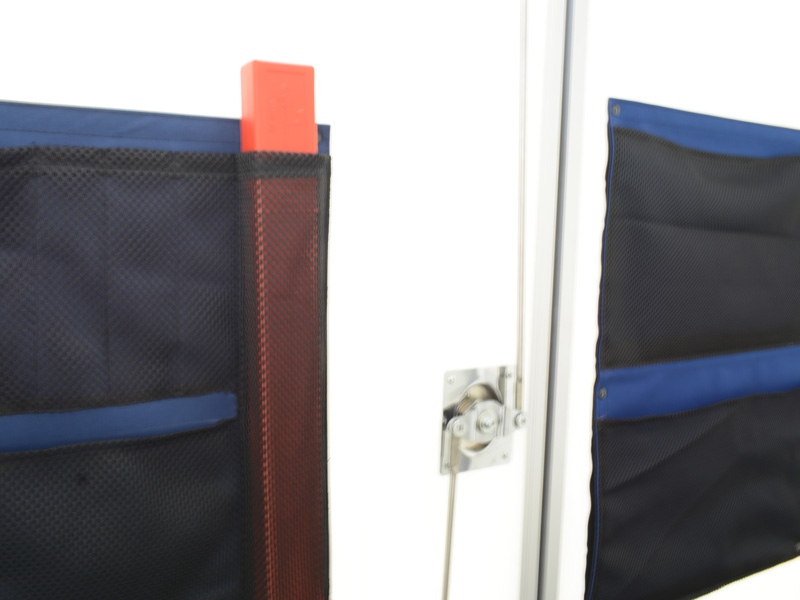

  • Car door net storage pocket
    Car door net storage pocket

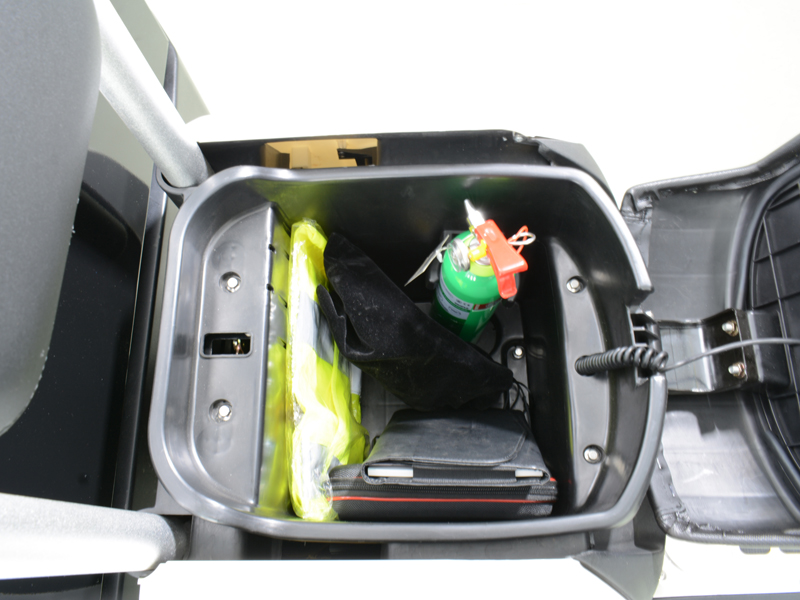

  • Glove compartment
    Glove compartment

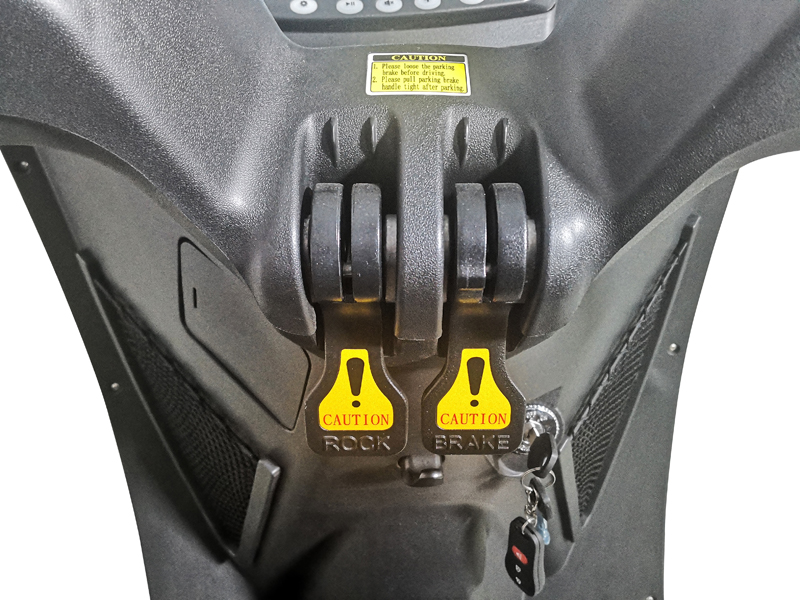

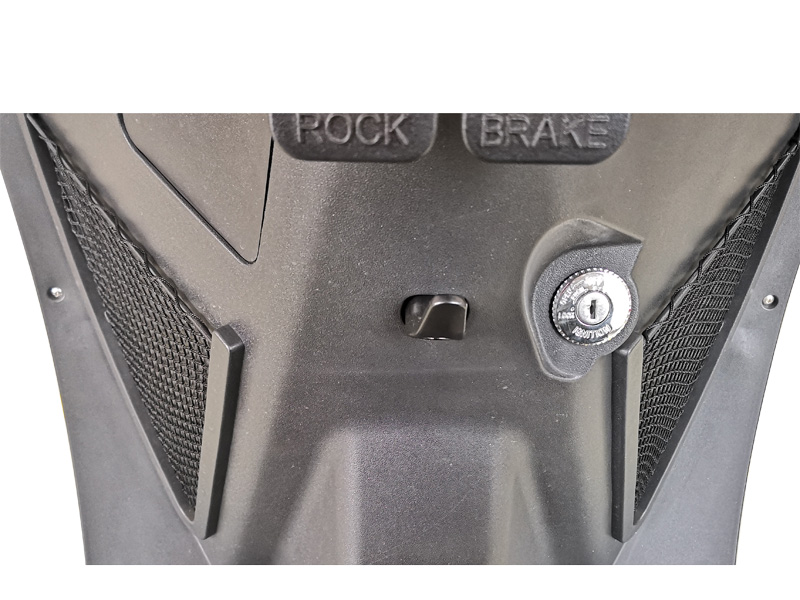

  • Rock and parking brake handles
    Rock and parking brake handles

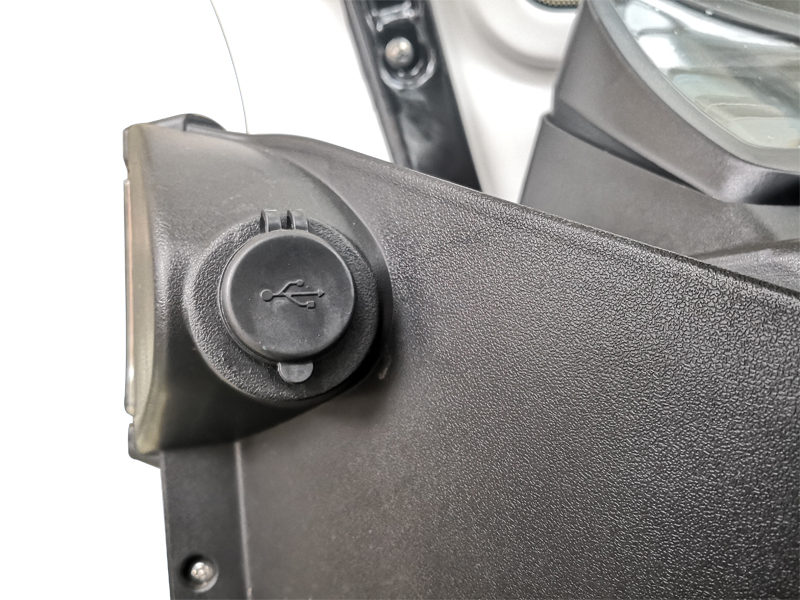

  • USB port
    USB port

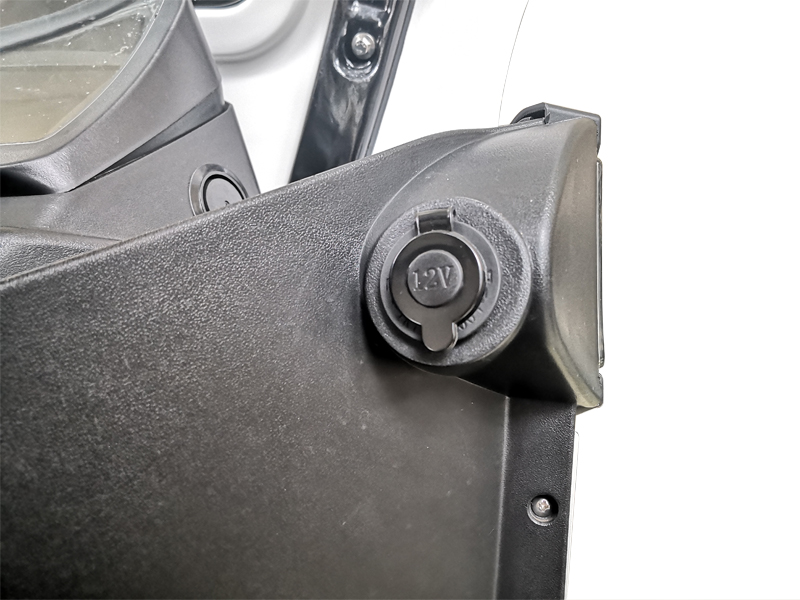

  • Vehicle power port
    Vehicle power port

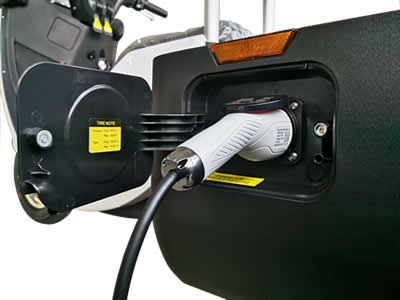

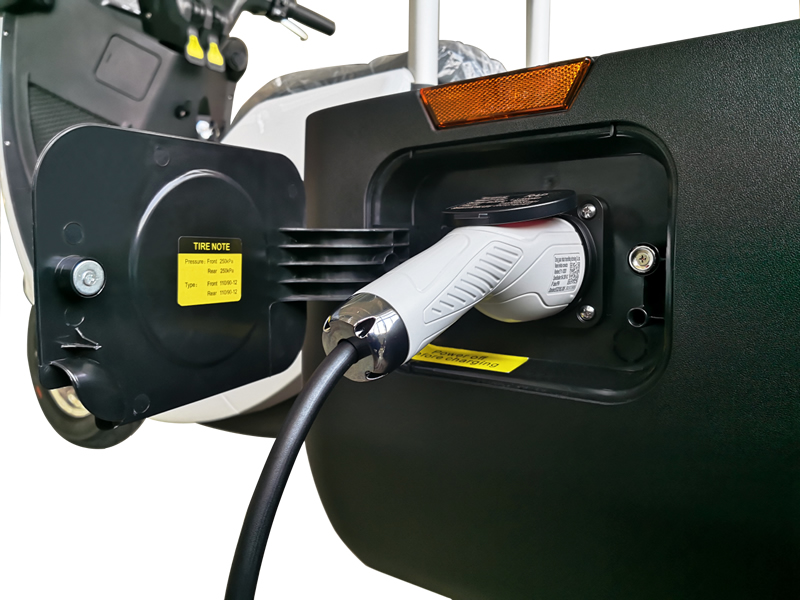

  • Charge port
    Charge port
  • Dashboard storage box
    Dashboard storage box

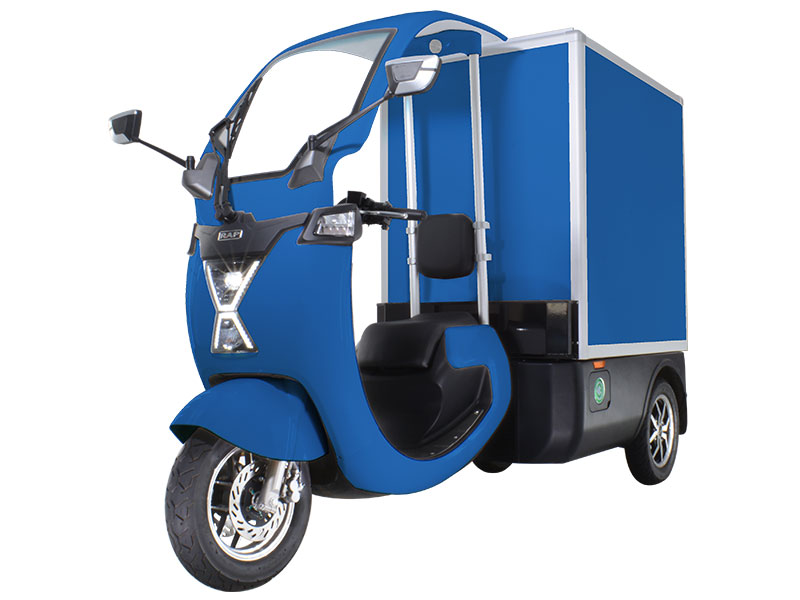

Custom Three Wheeler Cargo Truck

RAP SEV could provide different customization solution including vehicle color, logo, multiple layer structure of container, and rear parts types to meet the requirement of customers.
