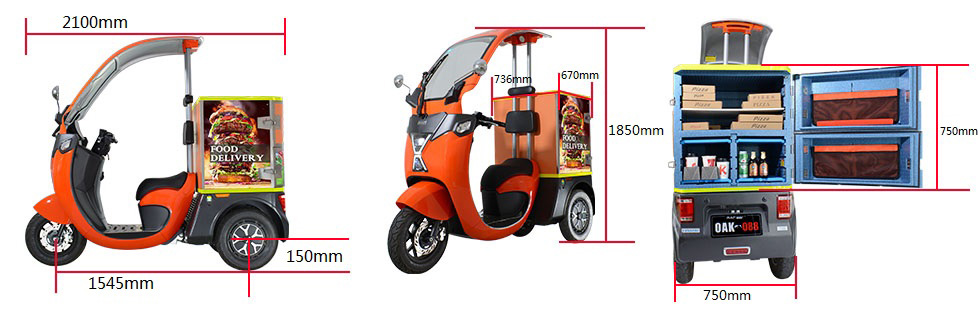

- Body size (L*W*H)
- 2100*750*1850
-
- Curb weight (no battery)
- 160kg
-
- Total mass
- 335kg
-
- Swing angle
- ±18°
-
- Max. gradability
- 20%
-
- Range, 30Km/h, unload
- 120km
-
- Min. ground clearance (no load)
- 150mm
-
- Battery type
- LiFePO4
-
- Battery weight
- 50kg
-
- Voltage
- 51.2V
-
- Nominal battery voltage
- 95ah
-
- Nominal battery energy
- 4.864kwh
-
- Max. Charging time
- 8h
-
- Motor type
- DC permanent magnet motor
-
- Min. Steering radius
- 2.5m
-
- Motor power
- 2*2kW
-
- Peak power
- 2*4kW
-
- Rated torque
- 2*70Nm
-
- Peak torque
- 2*130Nm
-
- Rated RPM
- 300rpm
-
- Frame Material
- EPP
-
- Body size (L*W*H)
- 670*736*750mm
-
- Volume
- 255L
-
- Loading mass
- 100kg
-
- Wheelbase
- 1545mm
-
- Tread(rear)
- 625mm
-
- No-load axle load distribution (F/R)
- 86/199kg
-
- Full load axle load distribution (F/R)
- 101/234kg
-
- Driven type
- Rear-wheel drive
-
- Tire (F)
- 110/90-12
-
- Tire (R)
- 110/90-12
-
- Air pressure
- 250kpa
- Main material for portable cargo compartment:EPP
- Hinge: 304 stainless steel
- Bolt: 304 stainless steel
- Partition: Celuka PVC foam board
- Shield for cargo compartment: oxford cloth/Aluminum based coating
- Ice pack: HDPE housing + ice gel
- Shared charging station
- Home Charger
-
-
Standard for socket and charging gun of shared charging station: IEC62196-2; standard for charging station: IEC/EN 61851
-
-
Each 3 wheel electric cargo scooter is delivered with a charger, providing fast charging in a convenient manner.
Fast charging | Slow charging | |
Max. input current | ≤16A | ≤7.5A |
Rated power | 2000W | 1000W |
Output current | 40A | 15A |
Conversion efficiency at maximum power output | ≥90% | ≥90% |
Working temperature (℃) | -25~55 | -25~55 |
SOC0-SOC100% charging time (h) | 3 | 6.5 |
SOC20%-SOC90% charging time (h) | 2 | 5 |
- Right handlebar
- Left handlebar
- Rock and parking brake handle
- Hub motor
- Driver seat
- Chinese Calligraphy Safe Journey
- Display screen –reversing camera display
- Front wheel disc brake
- Storage box
- Hourglass headlights
- Dashboard storage box
- Glove compartment
- Charge port
- USB port
- Power port
- Tools

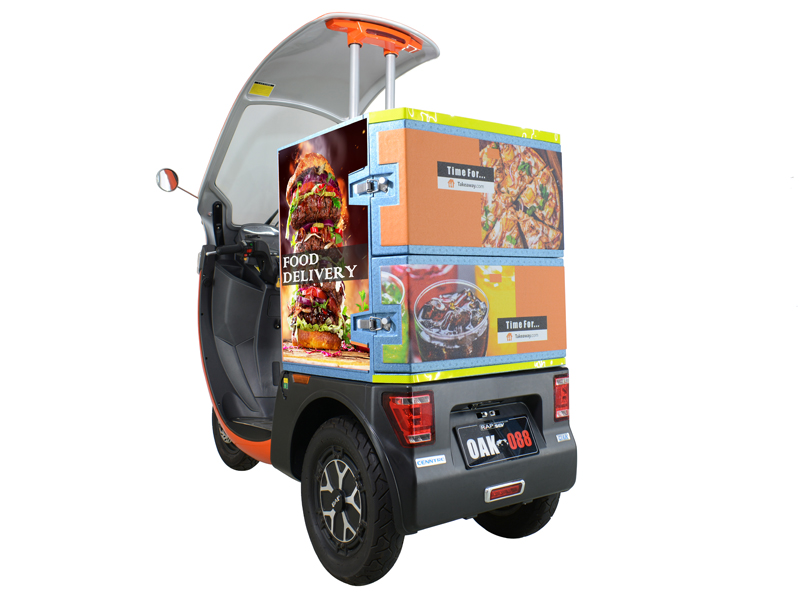

- The electric cargo scooter comes with a cargo compartment mainly made using EPP. With thermal conductivity ≤0.033, good heat preservation is ensured during food storage.
- The EPP foam features high impact resistance and good rebound resilience, prolonging cargo compartment’s lifetime.
- The EPP foam has very good resistance to oil, water and chemical, and complies with food grade standards, making the cargo compartment suitable for safely storing and transporting all types of food.
- The EPP box has hot and cold layers with customized temperature from -2 ℃ to 65 ℃.

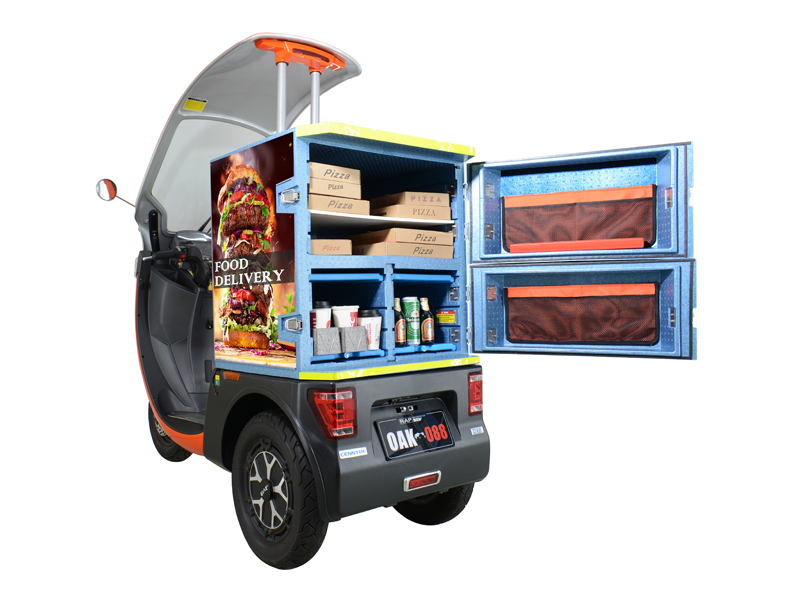

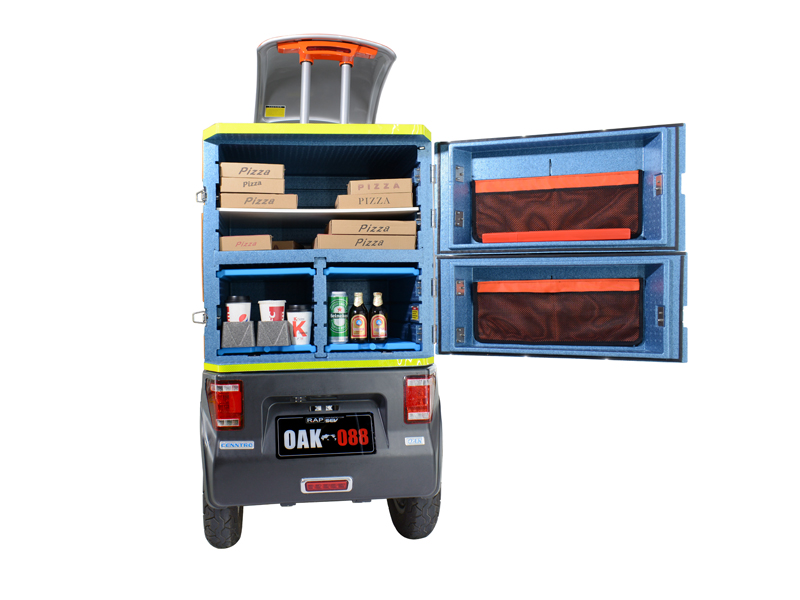

- With a capacity of 200L, the cargo compartment features a 2-layer structure:
Insulation layer on the top: with heating device inside, the temperature increase can achieve up to 20℃ within 15 minutes.
Refrigeration layer on the bottom: due to the ice pack inside, the temperature of cold beverages can be maintained as low as -10℃ for more than 5 hours. In addition, the cargo compartment is designed with cup holders and temperature display for monitoring cargo temperature anytime.
- The cargo compartment is shielded with oxford fabric. This delays its aging process. In addition, various printings can be made on the fabric for better visual effect.
RAP SEV could provide different customization solution including vehicle color, logo, multiple layer structure of container, and rear parts types to meet the requirement of customers.
